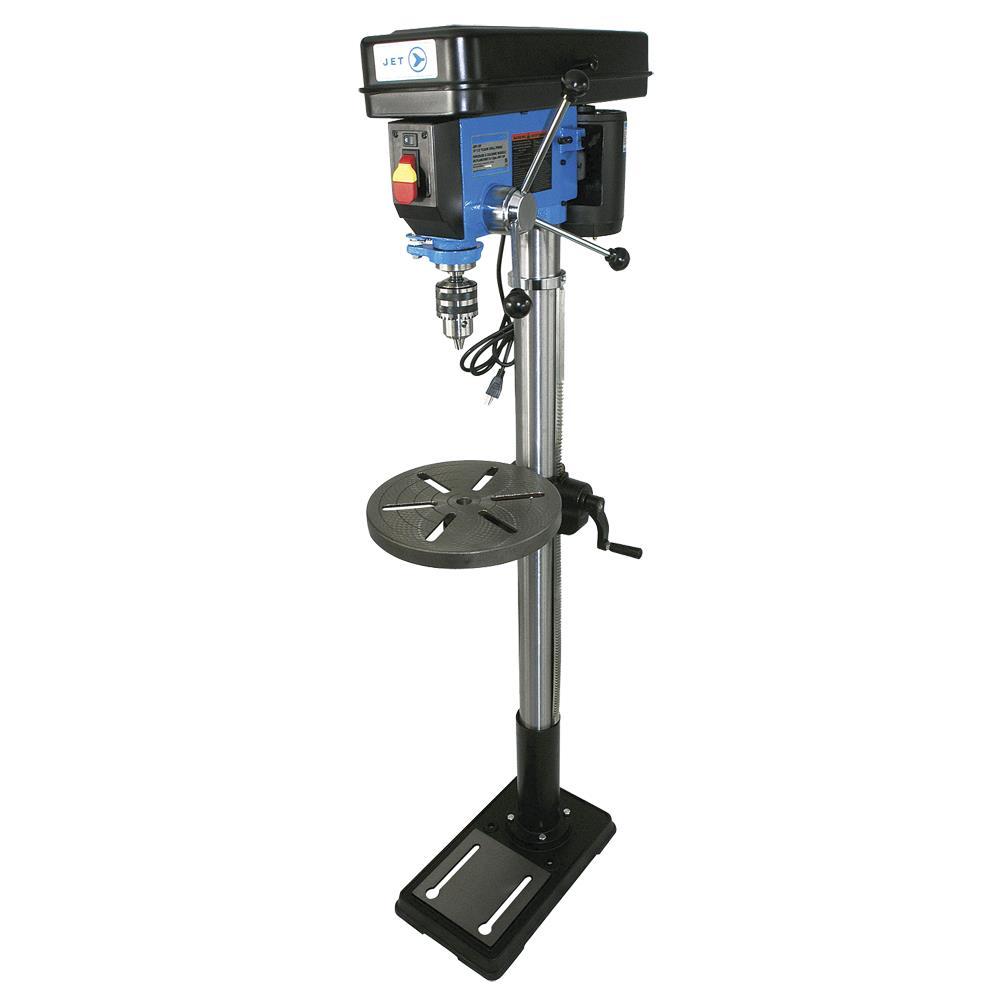

Drill Presses (200275)
by Jet - CA
JET offers a variety of professional-quality drill presses that are designed with the operator in mind. Each offers unsurpassed control and precision to help you drill into a wide range of materials.
Downloads
Product Specification
Item #
200275
Dimensions
Height: 9.00"
Width: 18.75"
Additional product details
Vendor Item #
200275
Industrial Category
Power Tools
Industrial Subcategory
Power Drills
Industrial Subtype
Corded Drills
, Floor Standing and Bench Mounted Drill Presses
Amperes
5.2A
Base Dimensions (in.)
10" x 16-1/2"
Base Dimensions in
10" x 16-1/2"
Brand
Strongarm
Certification
CSA
Chuck Size (in.)
5/8"
Chuck Size in
5/8"
Column Diameter (in.)
2-7/8"
Column Diameter in
2-7/8"
Country of Origin
CN
Drilling Size (in.)
5/8"
Drilling Size in
5/8"
Duty Level
Heavy Duty
Each Depth (in.)
9.00
Each Length (in.)
54.00
Each Qty.
1
Each Weight (lb)
114.0000
Each Width (in.)
18.75
Harmonized Tariff Code
8459.29.00.00
Height (in.)
61-5/8"
Height in
61-5/8"
Horsepower (HP)
3/4 HP
Horsepower HP
3/4 HP
HTS (Harmonized Tariff Schedule) Code
3926.90.10.00
Inner Pack Qty.
0
Item Length (inches)
54.00
Item Length inches
54.00
Item Quantity
1
Item Weight (lbs)
114.0000
Item Weight lbs
114.00
Master Pack Qty.
1
Master Pack Weight (lb)
0.0000
Max Spindle Distance to Table in
31-1/2"
Max. Spindle Distance to Table (in.)
31-1/2"
Model Number
JDP-13F
Number of Spindle Speeds
12
Order Unit Of Measure
EA
Package Quantity
1
Package Weight lbs
0
Quantity
1
Range of Spindle Speeds (RPM)
280 - 3,000 RPM
Range of Spindle Speeds RPM
280 - 3,000 RPM
Spindle Distance to Base (in.)
48-3/4"
Spindle Distance to Base in
48-3/4"
Spindle Taper
MT2
Spindle Travel (in.)
3-1/8"
Spindle Travel in
3-1/8"
Swing (in.)
13-1/4"
Swing in
13-1/4"
Table Diameter (in.)
11-3/8"
Table Diameter in
11-3/8"
Table Tilt (Left)
0 - 45°
Table Tilt (Right)
0 - 45°
Table Tilt Left
0 - 45°
Table Tilt Right
0 - 45°
UOM
EA
UPC
059629999233
UPC Code
059629815571
Voltage
115/230 V
Weight (lb.)
107
Manufactured By
Jet - CA
Other Details:
- 12 speed capability allows for a broad assortment of drilling applications
- Built-in work lamp with separate switch (bulb not included)
- Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
- Positive depth-setting mechanism uses a threaded rod and two lock nuts for accuracy
- Standard Equipment: Drill chuck and key
- Worktable with quick-release clamp rotates and tilts to 45° right and left
