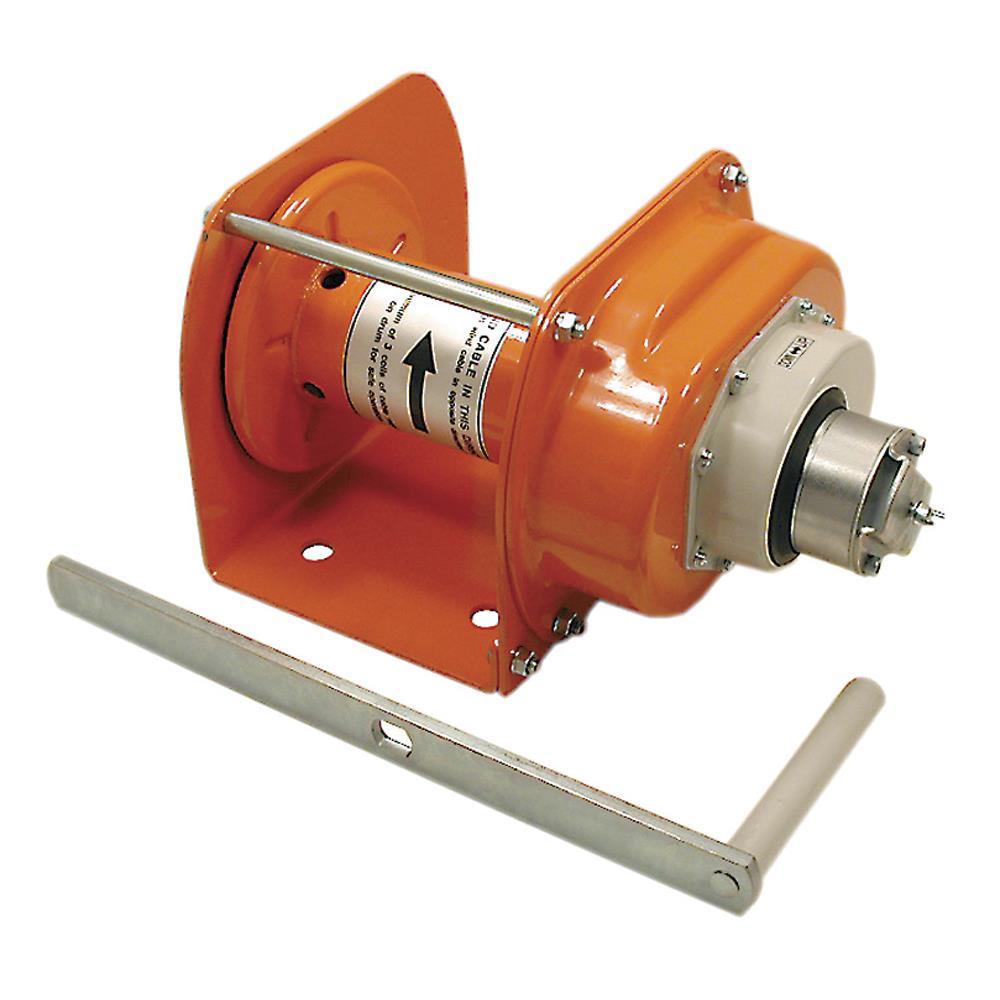

IWF Series Super Heavy Duty Hand Winches (113264)
by Jet - CA
Heavy-duty portable hand winches that help you tackle common lifting jobs more quickly and efficiently.
Downloads
Product Specification
Item #
113264
Dimensions
Height: 10.91"
Width: 12.72"
Additional product details
Vendor Item #
113264
Industrial Category
Material Handling
Industrial Subcategory
Winches
Industrial Subtype
Manual Winches
A in
3/1/2002
B in
6-57/64
Brand
JET
C in
6/7/1964
Cable Length Pull per Turn (in.)
1
Cable Length Pull per Turn in
1
Capacity (lb.)
1653
Capacity lb
1,653
Country of Origin
JP
D in
4/21/1964
Drum Dimensions
5/16 x 98'
Duty Level
Super Heavy Duty
E in
45/64
Each Depth (in.)
10.91
Each Length (in.)
17.60
Each Qty.
1
Each Weight (lb)
44.8239
Each Width (in.)
12.72
F in
20-53/64
Force Required to Lift (lb)
22
Force Required to Lift lb
22
G in
13-3/4
Gear Ratio
12.2:1
H in
8/7/2016
Handle Length (in.)
13-3/4
Handle Length in
13-3/4
Harmonized Tariff Code
8425.39.00.00
HTS (Harmonized Tariff Schedule) Code
8479.89.90.90
I in
6-45/64
Includes
ABS Plastic Protective Cover
Inner Pack Qty.
0
Inner Pack Weight (lb)
0.0000
Item Length (inches)
17.60
Item Length inches
17.60
Item Quantity
1
Item Weight (lbs)
44.8239
Item Weight lbs
44.82
J in
10/31/1964
K in
14-9/16
Master Pack Qty.
1
Master Pack Weight (lb)
0.0000
Model Number
IWF-1000N
Order Unit Of Measure
EA
Package Height inches
5.52
Package Length inches
14.18
Package Quantity
1
Package UPC
10059629884963
Package Weight lbs
0
Package Width inches
12.61
Quantity
1
Special Features
Adjustable Handle|Dual Pawl Weston Brake|Free Wheeling|Non-Asbestos Brake Disc|Rust Resistant
UPC
059629884966
UPC Code
059629838907
Weight
99
Manufactured By
Jet - CA
Other Details:
- All braking components are plated with a rust resistant finish
- Chain hoist type dual pawl Weston brake for ultimate load control
- Dust and weather-tight housing using an ABS plastic cover to seal out dust and rain
- Free wheeling feature enables the operator to pay out cable fast
- Non-asbestos brake discs use high quality low abrasion aramid fibre material for a safer and healthier environment
