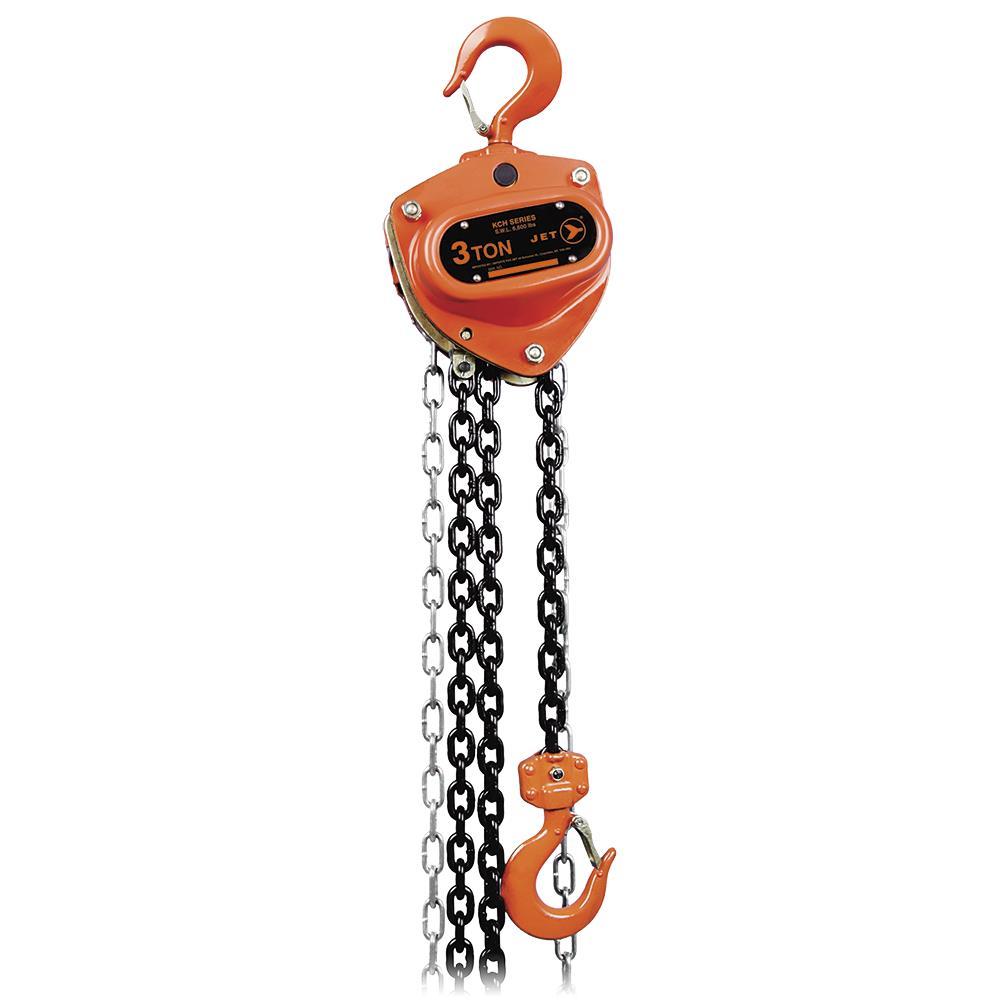

KCH Series Chain Hoist
Image may not reflect selected features
KCH Series Chain Hoist (101342) by Jet - CA
The KHC series chain hoists feature high-efficiency spur gearing for optimum lift with minimum effort. Use these hoists in mines, shipyards, foundries, and anywhere industrial grade manual chain hoists are required.
Product Specification
Item #
101342
Dimensions
Additional product details
Vendor Item #
101342
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists , Manual Chain Hoists
Brand
JET
Capacity (lb.)
6,600 lb
Capacity (T)
3 T
Capacity lb
6,600 lb
Capacity T
3 T
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin
CN
Duty Level
Heavy Duty
Each Qty.
1
Force Required to Lift
79 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
20"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Quantity
1
Length of Hand Chain Pulled to Lift Load to 1
114'
Length of Hand Chain Pulled to Lift Load to 1'
114'
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
7.1 mm
Load Chain Grade
100
Master Pack Code
10059629883393
Master Pack Qty.
0
Master Pack Weight (lb)
0.0000
Min. Distance Between Hooks
20"
Model Number
KCH-3010L
Number of Falls
2
Package Quantity
0
Package UPC
10059629806040
Package Weight lbs
0
Quantity
1
Special Features
Overload Protection|Non-asbestos brake discs
UOM
EA
UPC
059629806043
UPC Code
059629883396
Manufactured By
Jet - CA


Other Details:
  • Actuation is automatic, requiring no input from the operator
  • Device is factory preset to prevent serious overload of the hoist
  • Equipped with an automatic overload protection device as standard equipment (up to 5 tons)
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Triple spur geared for efficient operation
