KCH Series Chain Hoists
Image may not reflect selected features

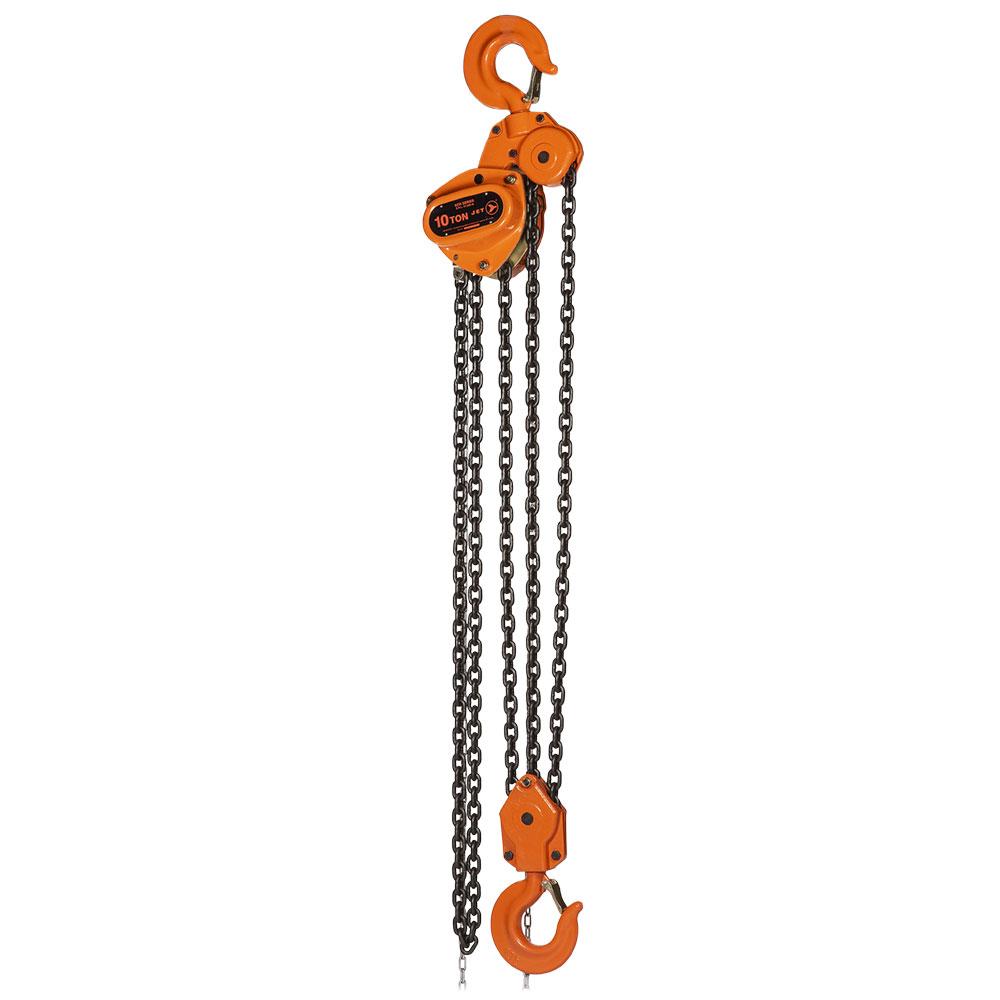

KCH Series Chain Hoists (101162) by Jet - CA
The JET KCH series chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Downloads
Product Specification
Item #
101162
Dimensions
Height: 12.50"
Width: 24.50"
Additional product details
Vendor Item #
101162
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists , Manual Chain Hoists
Brand
JET
Capacity (lb.)
22,000 lb
Capacity lb
22,000 lb
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin
CN
Duty Level
Heavy Duty
Each Depth (in.)
12.50
Each Length (in.)
18.50
Each Qty.
1
Each Weight (lb)
158.0000
Each Width (in.)
24.50
Force Required to Lift
92 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
29-15/16"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Item Length (inches)
18.50
Item Length inches
18.50
Item Quantity
1
Item Weight (lbs)
158.0000
Item Weight lbs
158.00
Length of Hand Chain Pulled to Lift Load to 1
384.6'
Length of Hand Chain Pulled to Lift Load to 1'
384.6'
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
10 mm
Load Chain Grade
100
Master Pack Depth (in.)
12.50
Master Pack Length (in.)
18.50
Master Pack Qty.
1
Master Pack Weight (lb)
158.0000
Master Pack Width (in.)
24.50
Model Number
KCH-10010
Number of Falls
3
Number of Safety Hooks
2
Package Quantity
1
Package UPC
10059629869465
Package Weight lbs
158
Quantity
1
Special Features
Non-asbestos brake discs
UPC
059629869468
UPC Code
059629871560
Manufactured By
Jet - CA


Other Details:
  • Dual pawl Weston style brake with heavy-duty springs provides safe and reliable operation
  • Load tested to 150% of rated capacity and includes certificate
  • Made with premium grade non-asbestos brake discs for long service life
  • Maintenance free sealed bearings provide easy operation
  • Professional grade triple spur gear is lightweight and portable
