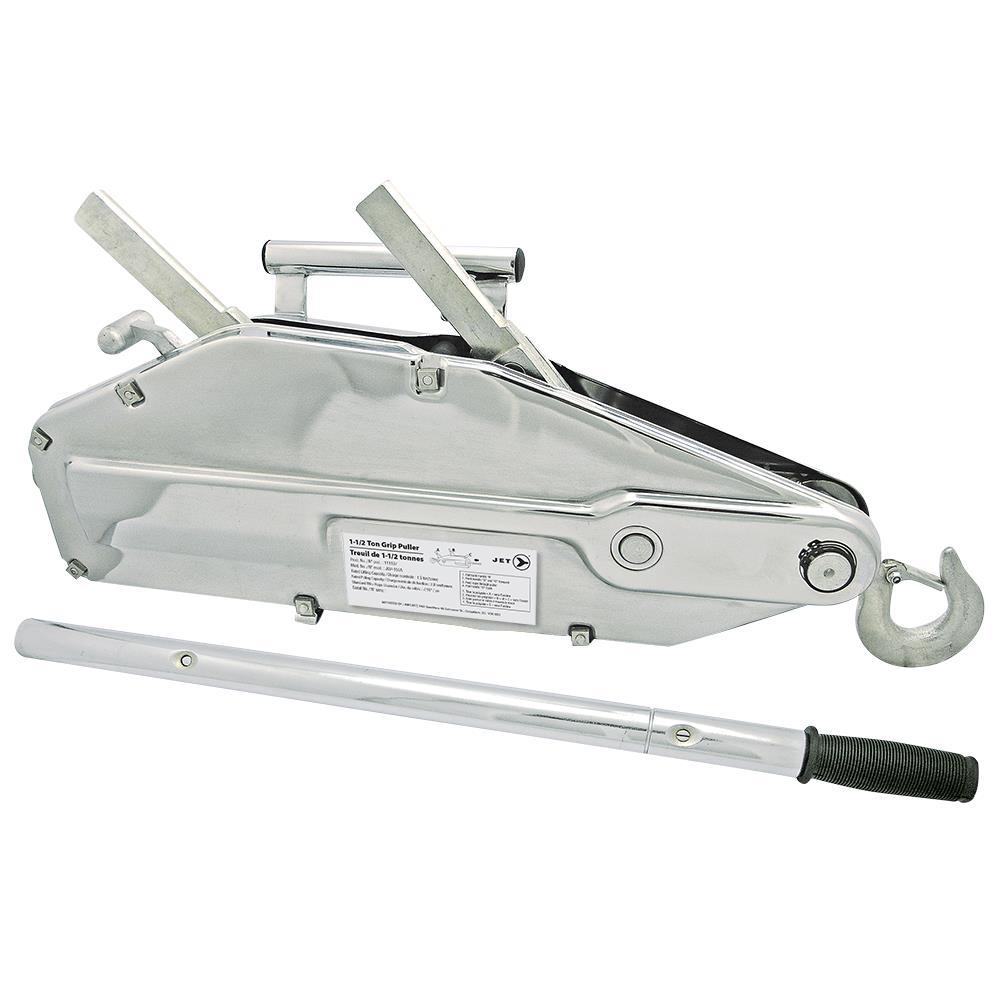

SGP Series Heavy Duty Wire Rope Pullers
Image may not reflect selected features
SGP Series Heavy Duty Wire Rope Pullers (111137) by Jet - CA
Lightweight, safe, and easy to operate, these professional-grade wire rope pullers are ideal for pulling, lifting, lowering, and securing loads over large distances.
Product Specification
Item #
111137
Dimensions
Height: 5.98"
Width: 13.62"
Additional product details
Vendor Item #
111137
Industrial Category
Material Handling
Industrial Subcategory
Below-the-Hook Lifting Accessories
Industrial Subtype
Lift Assists
Brand
JET
Cable Diameter (in.)
7/16"
Cable Diameter in
7/16"
Certification
ANSI B30.21 standards
Country of Origin
CN
Dimensions
21-1/2" x 3-3/4" x 10-1/4"
Duty Level
Heavy Duty
Each Depth (in.)
5.98
Each Length (in.)
29.88
Each Qty.
1
Each Weight (lb)
35.5999
Each Width (in.)
13.62
Effort at Rated Load (lb.)
93 lb
Effort at Rated Load lb
93 lb
Harmonized Tariff Code
8425.19.00.90
HTS (Harmonized Tariff Schedule) Code
8425.19.00.90
Inner Pack Qty.
0
Inner Pack Weight (lb)
0.0000
Item Length (inches)
29.88
Item Length inches
29.88
Item Quantity
1
Item Weight (lbs)
35.5999
Item Weight lbs
35.60
Master Pack Qty.
1
Master Pack Weight (lb)
0.0000
Model Number
JGP-150A
Operating Rope Advance
2.36"
Order Unit Of Measure
EA
Package Quantity
1
Package UPC
10059629884871
Package Weight lbs
0
Quantity
1
Rated Capacity lb
3,520 lb
Rated Capacity T
1-1/2 T
Rated Lifting Capacity (lb.)
3,520 lb
Rated Lifting Capacity (T)
1-1/2 T
Rated Lifting Capacity lb
3,520 lb
Rated Lifting Capacity T
1-1/2 T
Rated Pulling Capacity (lb.)
5,720 lb
Rated Pulling Capacity (T)
2.8 T
Rated Pulling Capacity lb
5,720 lb
Rated Pulling Capacity T
2.8 T
Telescopic Handle Length
44"
UPC
059629884874
UPC Code
059629806050
Manufactured By
Jet - CA


Other Details:
  • An overload protection system is built-in with a shearing pin in the forward lever which will shear when approximately 25% overloaded
  • Lightweight, simple, and safe to operate
  • Made with compact high strength steel housing
  • May be used in any position to lift, pull, lower, or stretch heavy loads
  • The rope clamp system is easily disengaged with a lever to allow smooth installation of the wire rope
