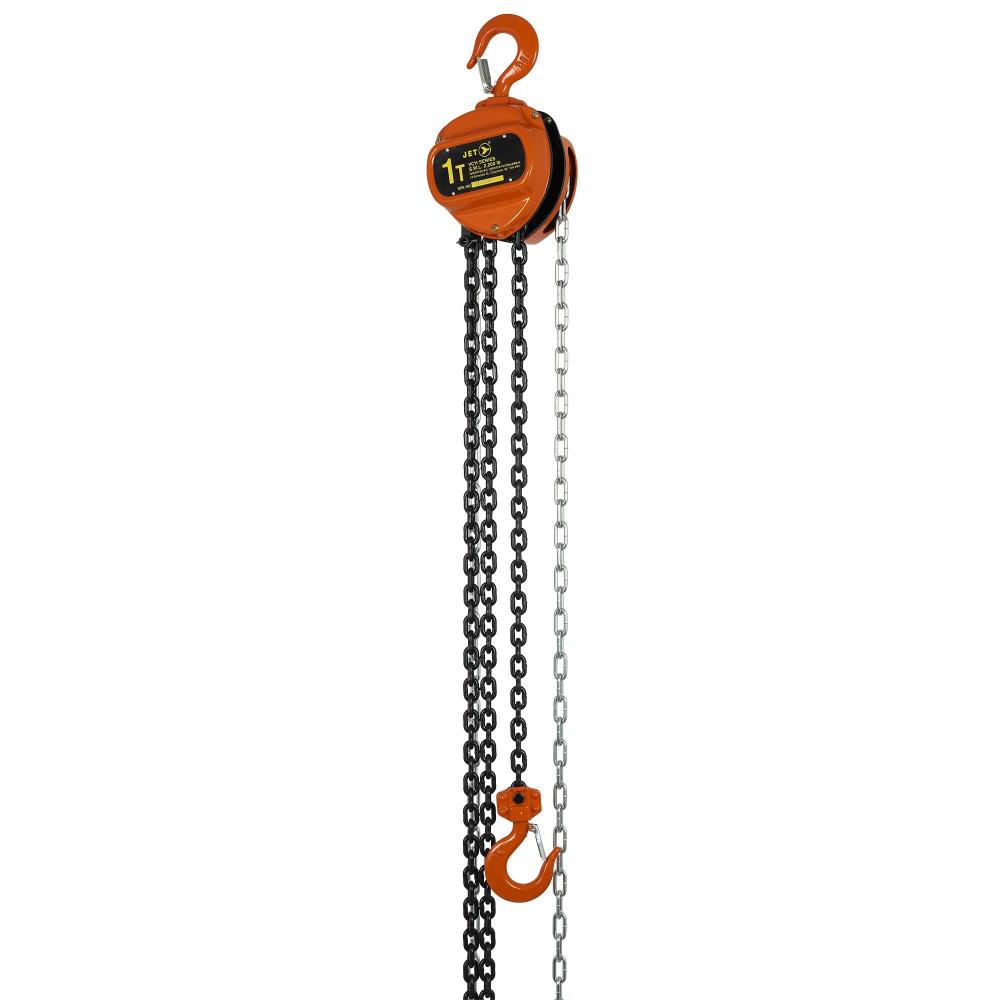

VHC Series Chain Hoists (101002)
by Jet - CA
JET Tools chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Downloads
Product Specification
Item #
101002
Dimensions
Height: 6.14"
Width: 6.85"
Additional product details
Vendor Item #
101002
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists
, Manual Chain Hoists
Brand
JET
Capacity (lb.)
1,100 lb
Capacity (T)
1/2 T
Capacity lb
1,100 lb
Capacity T
1/2 T
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin
CN
Each Depth (in.)
6.14
Each Length (in.)
9.88
Each Qty.
1
Each Weight (lb)
20.0839
Each Width (in.)
6.85
Force Required to Lift
49 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
11-1/32"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
9.88
Item Length inches
9.88
Item Quantity
1
Item Weight (lbs)
20.0839
Item Weight lbs
20.08
Length of Hand Chain Pulled to Lift Load to 1
27'
Length of Hand Chain Pulled to Lift Load to 1'
27'
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
6.0 mm
Load Chain Grade
80
Master Pack Qty.
1
Master Pack Weight (lb)
8.9800
Min. Distance Between Hooks
11-1/32"
Model Number
VCH-0510
Number of Falls
1
Number of Safety Hooks
2
Package Quantity
1
Package UPC
10059629883416
Package Weight lbs
8.98
Quantity
1
Special Features
Non-asbestos brake discs
UPC
059629883419
UPC Code
059629869253
Manufactured By
Jet - CA
Other Details:
- Dual pawl Weston-style brake provides safe and reliable operation
- Load tested to 150% of rated capacity and includes certificate
- Made with grade 80 heat-treated alloy steel load chain
- Made with premium-grade non-asbestos brake discs for long service life
- Professional-grade triple spur gear is lightweight and portable
