VHC Series Chain Hoists
Image may not reflect selected features

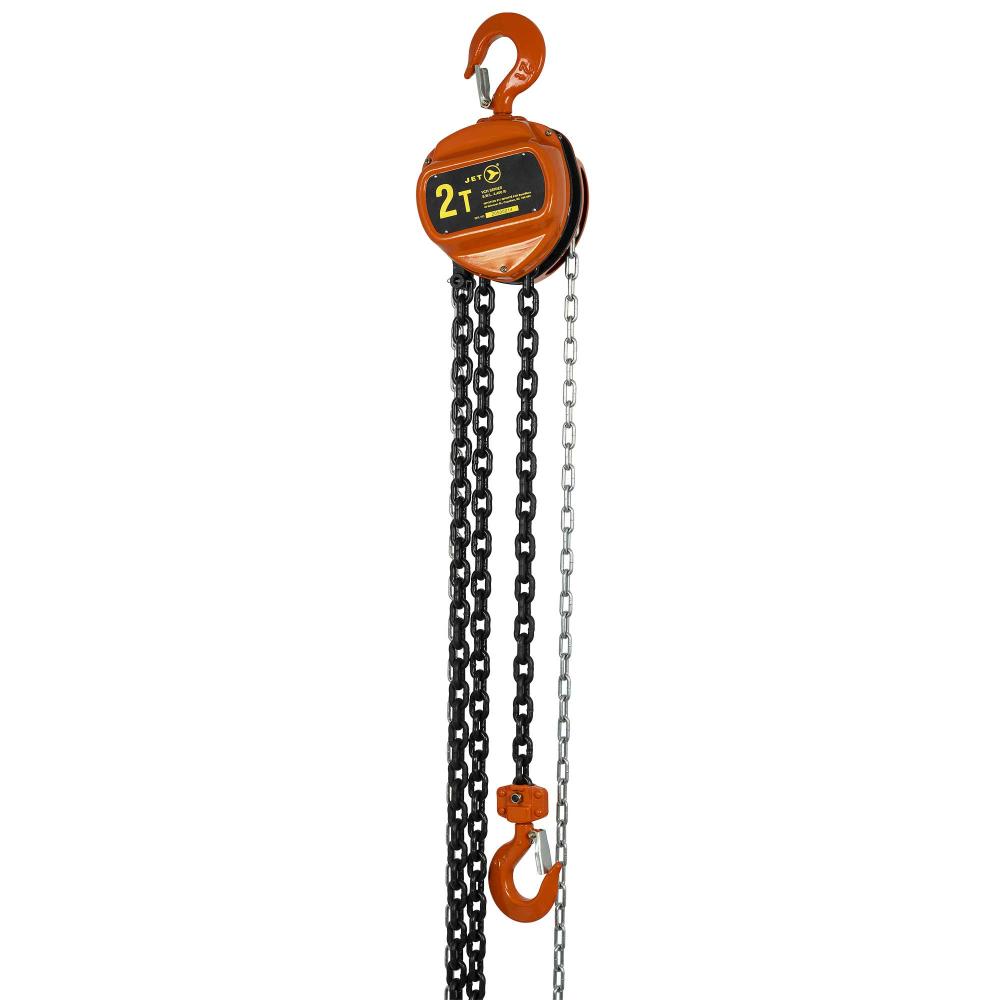

VHC Series Chain Hoists (101032) by Jet - CA
JET Tools chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Downloads
Product Specification
Item #
101032
Dimensions
Height: 6.69"
Width: 9.06"
Additional product details
Vendor Item #
101032
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists , Manual Chain Hoists
Brand
JET
Capacity (lb.)
4,400 lb
Capacity (T)
2 T
Capacity lb
4,400 lb
Capacity T
2 T
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin
CN
Each Depth (in.)
6.69
Each Length (in.)
12.20
Each Qty.
1
Each Weight (lb)
39.9033
Each Width (in.)
9.06
Force Required to Lift
102 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
17-1/2"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
12.20
Item Length inches
12.20
Item Quantity
1
Item Weight (lbs)
39.9033
Item Weight lbs
39.90
Length of Hand Chain Pulled to Lift Load to 1
70'
Length of Hand Chain Pulled to Lift Load to 1'
70'
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
8.0 mm
Load Chain Grade
80
Master Pack Code
10059629869298
Master Pack Qty.
1
Master Pack Weight (lb)
17.5600
Min. Distance Between Hooks
17-1/2"
Model Number
VCH-2010
Number of Falls
1
Number of Safety Hooks
2
Package Quantity
1
Package UPC
10059629801809
Package Weight lbs
17.56
Quantity
1
Special Features
Non-asbestos brake discs
UOM
EA
UPC
059629801802
UPC Code
059629869291
Manufactured By
Jet - CA


Other Details:
  • Dual pawl Weston-style brake provides safe and reliable operation
  • Load tested to 150% of rated capacity and includes certificate
  • Made with grade 80 heat-treated alloy steel load chain
  • Made with premium-grade non-asbestos brake discs for long service life
  • Professional-grade triple spur gear is lightweight and portable
