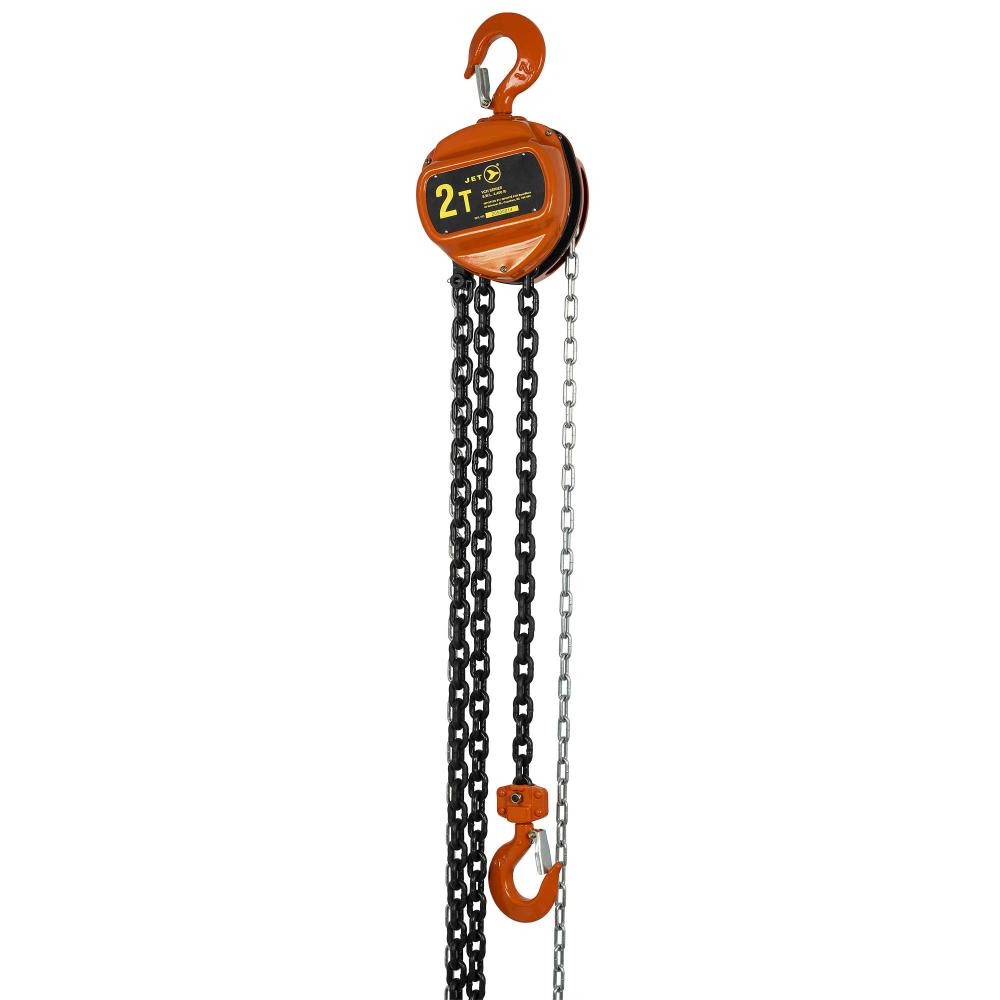

VHC Series Chain Hoists (101036)
by Jet - CA
JET Tools chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Product Specification
Item #
101036
Dimensions
Height: 6.50"
Width: 10.63"
Additional product details
Vendor Item #
101036
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists
, Manual Chain Hoists
Brand
JET
Capacity (lb.)
4,400 lb
Capacity (T)
2 T
Capacity lb
4,400 lb
Capacity T
2 T
Certification
ISO 9001-2000 certified factory|ASME B30.16 standards
Country of Origin
CN
Each Depth (in.)
6.50
Each Length (in.)
14.17
Each Qty.
1
Each Weight (lb)
55.3355
Each Width (in.)
10.63
Force Required to Lift
102 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
17-1/2"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
14.17
Item Length inches
14.17
Item Quantity
1
Item Weight (lbs)
55.3355
Item Weight lbs
55.34
Length of Hand Chain Pulled to Lift Load to 1
70'
Length of Hand Chain Pulled to Lift Load to 1'
70'
Lift (ft.)
20'
Lift ft
20'
Load Chain Diameter
8.0 mm
Load Chain Grade
80
Master Pack Qty.
1
Master Pack Weight (lb)
24.8600
Min. Distance Between Hooks
17-1/2"
Model Number
VCH-2020
Number of Falls
1
Number of Safety Hooks
2
Package Quantity
1
Package UPC
10059629823504
Package Weight lbs
24.86
Quantity
1
Special Features
Non-asbestos brake discs
UOM
EA
UPC
059629823507
UPC Code
059629869307
Manufactured By
Jet - CA
Other Details:
- Dual pawl Weston-style brake provides safe and reliable operation
- Load tested to 150% of rated capacity and includes certificate
- Made with grade 80 heat-treated alloy steel load chain
- Made with premium-grade non-asbestos brake discs for long service life
- Professional-grade triple spur gear is lightweight and portable
