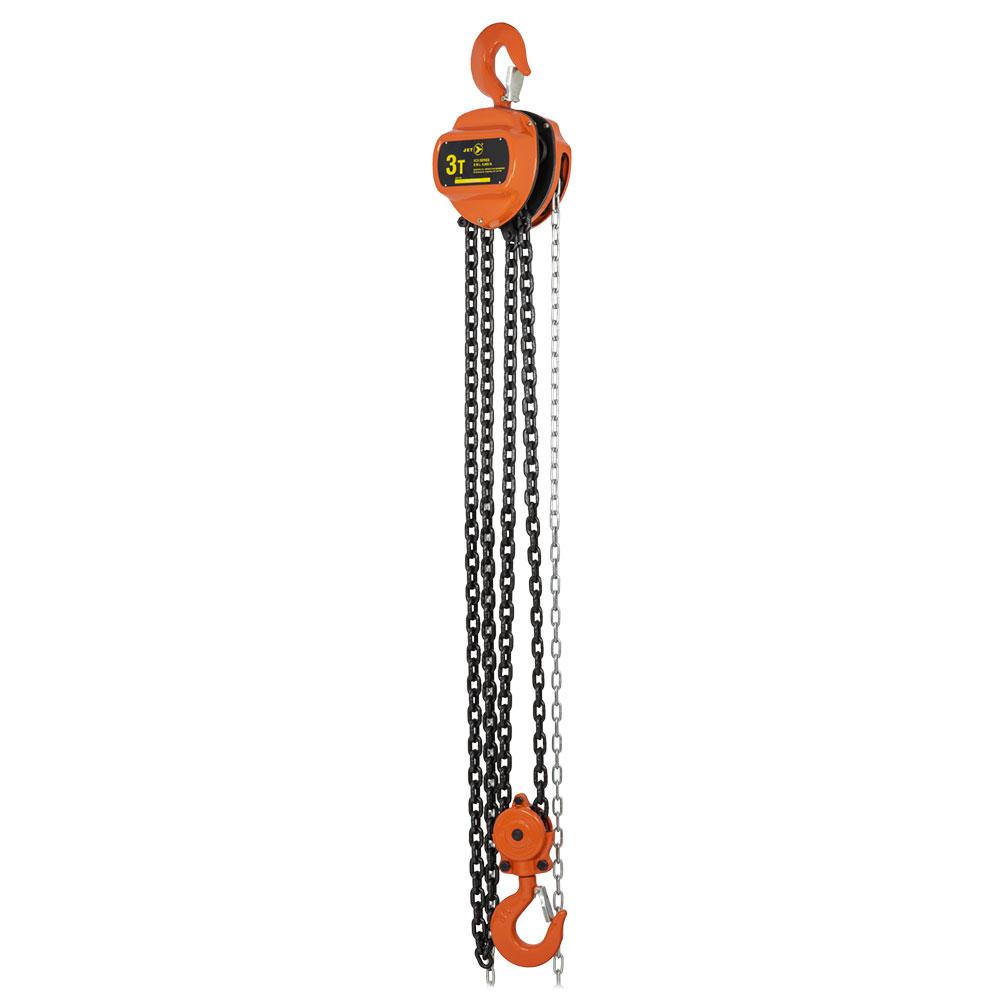

VHC Series Chain Hoists
Image may not reflect selected features
VHC Series Chain Hoists (101042) by Jet - CA
JET Tools chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Downloads
Product Specification
Item #
101042
Dimensions
Height: 6.50"
Width: 10.00"
Additional product details
Vendor Item #
101042
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists , Manual Chain Hoists
Brand
JET
Capacity (lb.)
6,600 lb
Capacity (T)
3 T
Capacity lb
6,600 lb
Capacity T
3 T
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin
CN
Each Depth (in.)
6.50
Each Length (in.)
14.50
Each Qty.
1
Each Weight (lb)
56.4000
Each Width (in.)
10.00
Force Required to Lift
88 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
20-15/32"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
14.50
Item Length inches
14.50
Item Quantity
1
Item Weight (lbs)
56.4000
Item Weight lbs
56.40
Length of Hand Chain Pulled to Lift Load to 1
53'
Length of Hand Chain Pulled to Lift Load to 1'
53'
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
8.0 mm
Load Chain Grade
80
Master Pack Qty.
1
Min. Distance Between Hooks
20-15/32"
Model Number
VCH-3010
Number of Falls
2
Number of Safety Hooks
2
Order Unit Of Measure
EA
Package Quantity
1
Package UPC
10059629823511
Quantity
1
Special Features
Non-asbestos brake discs
UOM
EA
UPC
059629823514
UPC Code
059629886038
Manufactured By
Jet - CA


Other Details:
  • Dual pawl Weston-style brake provides safe and reliable operation
  • Load tested to 150% of rated capacity and includes certificate
  • Made with grade 80 heat-treated alloy steel load chain
  • Made with premium-grade non-asbestos brake discs for long service life
  • Professional-grade triple spur gear is lightweight and portable
