VLP Series Chain Hoists
Image may not reflect selected features

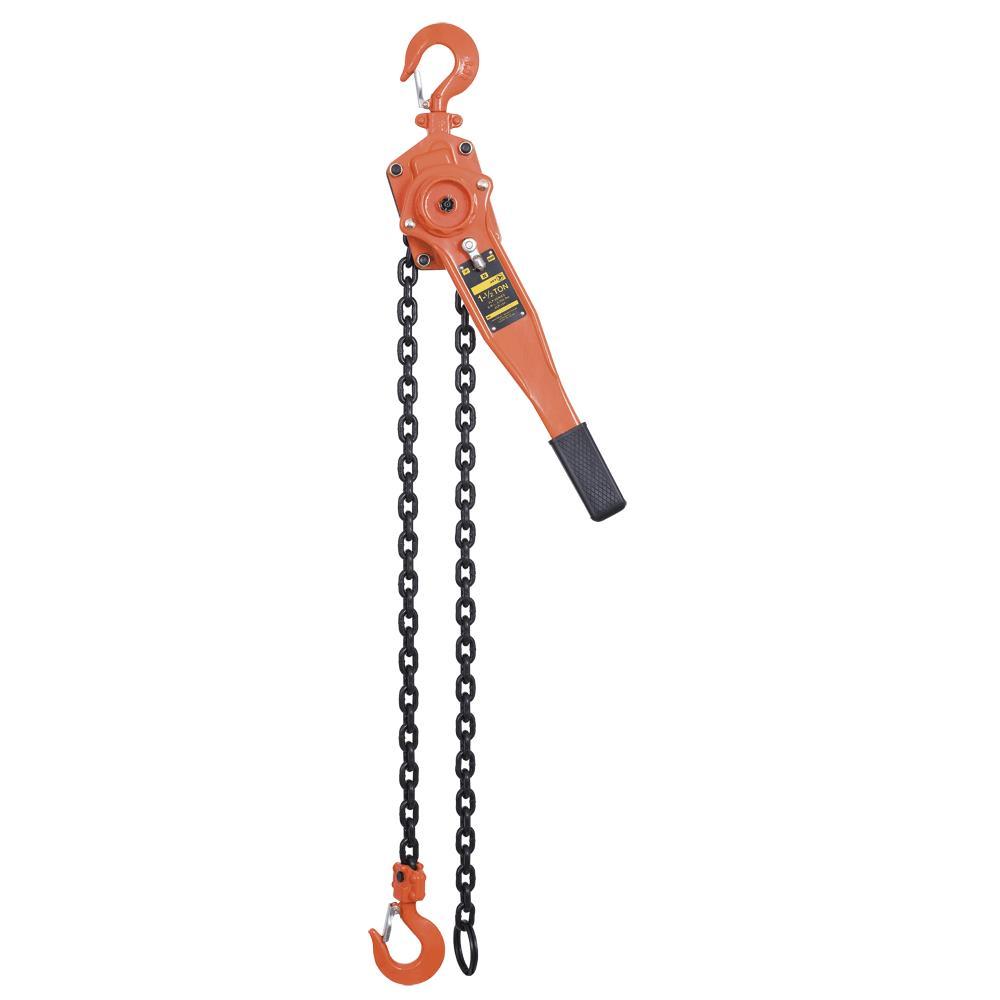

VLP Series Chain Hoists (110303) by Jet - CA
The JET VLP series chain hoists are built using high quality and durable components that allow you to elevate, suspend and lower loads safely and easily.
Downloads
Product Specification
Item #
110303
Dimensions
Height: 8.10"
Width: 8.35"
Additional product details
Vendor Item #
110303
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Lever Chain Hoists
Brand
JET
Capacity (T)
1-1/2 T
Capacity T
1-1/2 T
Certification
ISO 9001-2000 certified factory|ASME B30.16 standards
Country of Origin
CN
Each Depth (in.)
8.10
Each Length (in.)
20.55
Each Qty.
1
Each Weight (lb)
25.7300
Each Width (in.)
8.35
Force Required to Lift
48 lb
Harmonized Tariff Code
8425.19.00.10
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
20.55
Item Length inches
20.55
Item Quantity
1
Item Weight (lbs)
25.7300
Item Weight lbs
25.73
Lever Length (in.)
16-1/2"
Lever Length in
16-1/2"
Lift (ft.)
5'
Lift ft
5'
Load Chain Diameter
8.0 mm
Load Chain Grade
80
Master Pack Qty.
1
Master Pack Weight (lb)
0.0000
Min Distance Between Hooks
15"
Min. Distance Between Hooks
15"
Model Number
VLP-150
Number of Falls
1
Package Quantity
1
Package UPC
10059629884901
Package Weight lbs
0
Quantity
1
Special Features
Non-asbestos brake discs
UPC
059629884904
UPC Code
059629869420
Manufactured By
Jet - CA


Other Details:
  • Galvanized chain, hub, lever switch and inside plates is resistant to corrosion and provides long service life
  • Hoists are load tested to 150% of rated capacity to ensure safe use and operation
  • Short lever length allows for easier access into confined work areas
  • Special heavy-duty brake pads last 5x longer than traditional styles
  • Stamped steel housing protects gears and brake mechanism from damage
