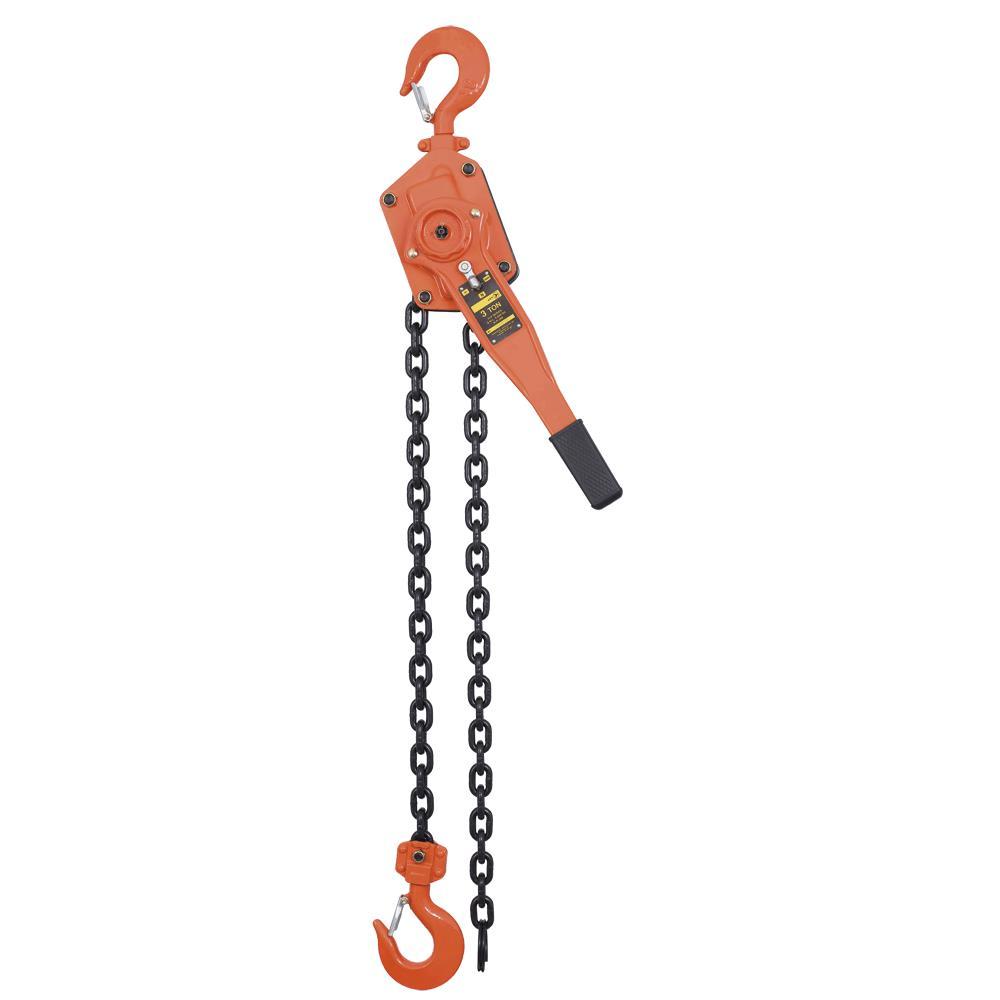

VLP Series Chain Hoists (110308)
by Jet - CA
The JET VLP series chain hoists are built using high quality and durable components that allow you to elevate, suspend and lower loads safely and easily.
Product Specification
Item #
110308
Dimensions
Height: 8.50"
Width: 7.50"
Additional product details
Vendor Item #
110308
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Lever Chain Hoists
Brand
JET
Capacity (T)
3 T
Capacity T
3 T
Certification
ISO 9001-2000 certified factory|ASME B30.16 standards
Country of Origin
CN
Each Depth (in.)
8.50
Each Length (in.)
22.00
Each Qty.
1
Each Weight (lb)
49.6000
Each Width (in.)
7.50
Force Required to Lift
70 lb
Harmonized Tariff Code
8425.19.00.10
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
22.00
Item Length inches
22.00
Item Quantity
1
Item Weight (lbs)
49.6000
Item Weight lbs
49.60
Lever Length (in.)
16-1/2"
Lever Length in
16-1/2"
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
10.0 mm
Load Chain Grade
80
Master Pack Qty.
1
Min Distance Between Hooks
118-7/8"
Min. Distance Between Hooks
118-7/8"
Model Number
VLP-300-10
Number of Falls
1
Order Unit Of Measure
EA
Package Quantity
1
Package UPC
10059629884949
Quantity
1
Special Features
Non-asbestos brake discs
UPC
059629884942
UPC Code
059629886076
Manufactured By
Jet - CA
Other Details:
- Galvanized chain, hub, lever switch and inside plates is resistant to corrosion and provides long service life
- Hoists are load tested to 150% of rated capacity to ensure safe use and operation
- Short lever length allows for easier access into confined work areas
- Special heavy-duty brake pads last 5x longer than traditional styles
- Stamped steel housing protects gears and brake mechanism from damage
