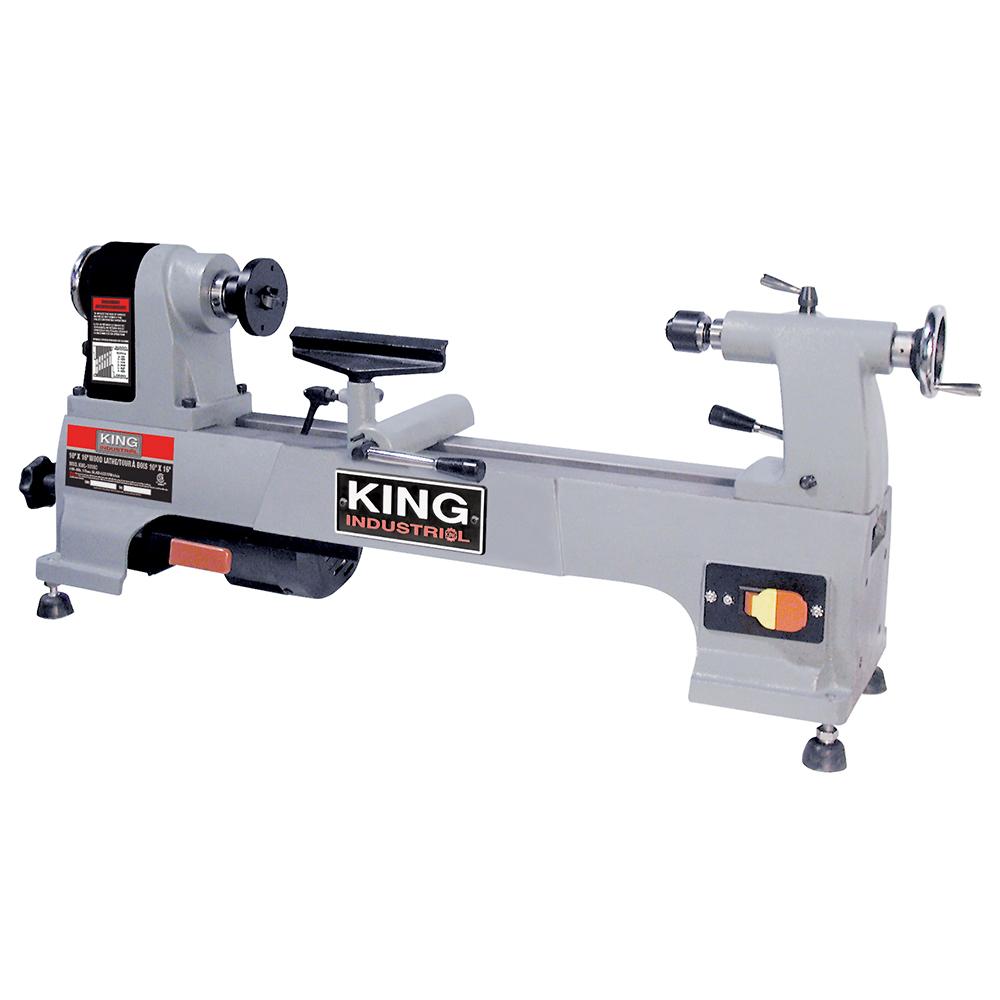

10" x 16" Wood lathe (KWL-1016C)
by King Canada
10" x 16" Wood lathe
Product Specification
Item #
KWL-1016C
Dimensions
Height: 15.00"
Width: 10.00"
Additional product details
Vendor Item #
KWL-1016C
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight
34'' x 10'' x 15'' / 106 lbs
Distance between centers
16''
Headstock and tailstock taper
MT #2
Item Length (inches)
34
Item Quantity
1
Item Weight (lbs)
106 lbs
Moteur
1/2 HP / 1,720 RPM
Package dimensions (LxWxH) / Weight
37'' x 12'' x 17-1/4'' / 110 lbs
Product Series
KING INDUSTRIAL
Sanding paper diameter
3-1/2''
Spec 01
Swing over bed: 10"
Spec 02
Swing over base : 7-1/2"
Spec 03
Distance between centers: 16"
Spec 04
Spindle size (RH thread) : 1" x 8 TPI
Spec 05
Spindle speeds: 6 (480 / 1,270 / 1,960 / 2,730 / 3,327 / 4,023 RPM)
Spec 06
Headstock and tailstock taper: MT #2
Spec 07
Self-ejecting tailstock travel : 3-1/2"
Spec 08
Motor: 1/2 HP / 1,720 RPM
Spec 09
Voltage: 110V, 1 phase, 60 Hz
Spec 10
Assembled dimensions (LxWxH) / Weight: 34" x 10" x 15" / 106 lbs
Spec 11
Packaging dimensions (LxWxH) / Weight: 37" x 12" x 17-1/4" / 110 lbs
Spindle size (HR thread)
1'' x 8 TPI
Spindle speed
6 (480 / 1,270 / 1,960 / 2,730 / 3,327 / 4,023 RPM)
Swing
7-1/2''
Swing over base
10''
UNSPSC Number
23242300
UPC Number
7 72995 00332 7
Variable speeds (wood)
110V, 1 phase, 60 Hz
Manufactured By
King Canada
Other Details:
- 10" inboard swing for bowl turning
- All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
- Complete with MT#2 live center, MT#2 spur center, 3" faceplate, steel knock-out bar, hex. keys and safety glasses
- Easy access 6-speed step pulley matches speed with specific turning operation
- Large 6" toolrest for flexibility in turning positions
- Maximum turning capacity of 16” between centers
- Toolrest post clamp can be positioned on either side
