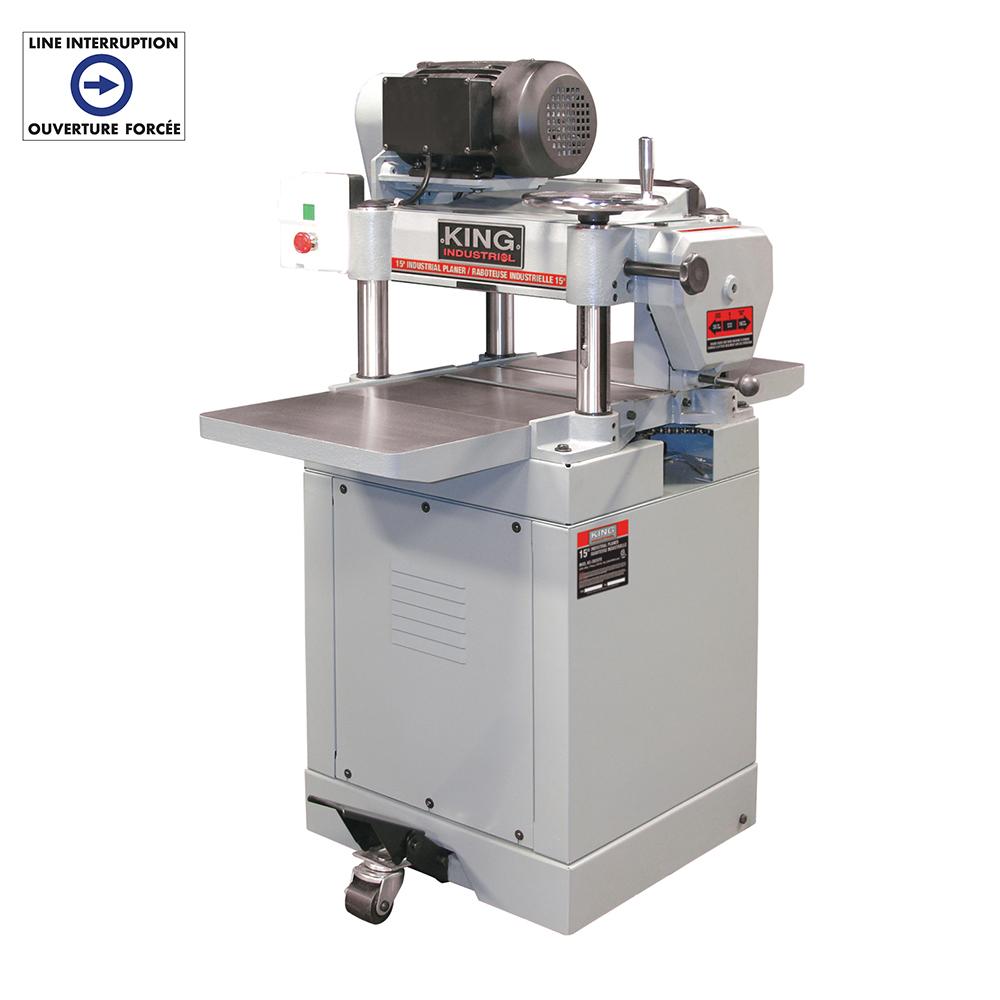

15" Industrial planer (KC-382CFX)
by King Canada
15" Industrial planer
Product Specification
Item #
KC-382CFX
Dimensions
Height: 51.00"
Width: 42.00"
Additional product details
Vendor Item #
KC-382CFX
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Planers, Jointers and Beveler
Category Level 4
Planers and Accessories
Assembled dimensions (LxWxH) / Weight
28-1/2'' x 42'' x 51''/ 450 lbs
Cutterhead diameter
3''
Cutterhead speed
5,000 RPM
Feed rate
2 (16-30) FPM
Item Length (inches)
28.5
Item Quantity
1
Item Weight (lbs)
450 lbs
Maximum depth of box
1/8''
Maximum planing depth
6''
Maximum planing thickness
15''
Moteur
15 Amp.
Number and range of modular pitches
78-42
Number of feed rollers
3
Product Series
KING INDUSTRIAL
Spec 01
Maximum planing width: 15"
Spec 02
Maximum planing thickness: 6"
Spec 03
Maximum depth of cut: 1/8"
Spec 04
Cutterhead speed: 5,000 RPM
Spec 05
Cutterhead diameter: 3"
Spec 06
Number of knives: 3
Spec 07
Feed rate: 2 (16-30) FPM
Spec 08
Number of cuts per inch: 78-42
Spec 09
Motor: 15 Amp.
Spec 10
Voltage: 220V, 1 phase, 60 Hz
Spec 11
Assembled dimensions (LxWxH) / Weight: 28-1/2" x 42" x 51"/ 450 lbs
UNSPSC Number
23231904
UPC Number
7 72995 01194 0
Variable speeds (wood)
220V, 1 phase, 60 Hz
Manufactured By
King Canada
Other Details:
- Anti-kickback fingers in front of the infeed roller to prevent wood kickback
- Comes complete with cabinet stand, planing knives, knife setting gauge and 4" dust collector outlet
- Cutterhead raises and lowers on four precision ground columns for extra stability
- Extension tables provide support for longer material
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
- Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
- Magnetic safety switch
- Mobile base system built into the cabinet
- Powerful 3 HP Motor
- Three knives cutterhead
