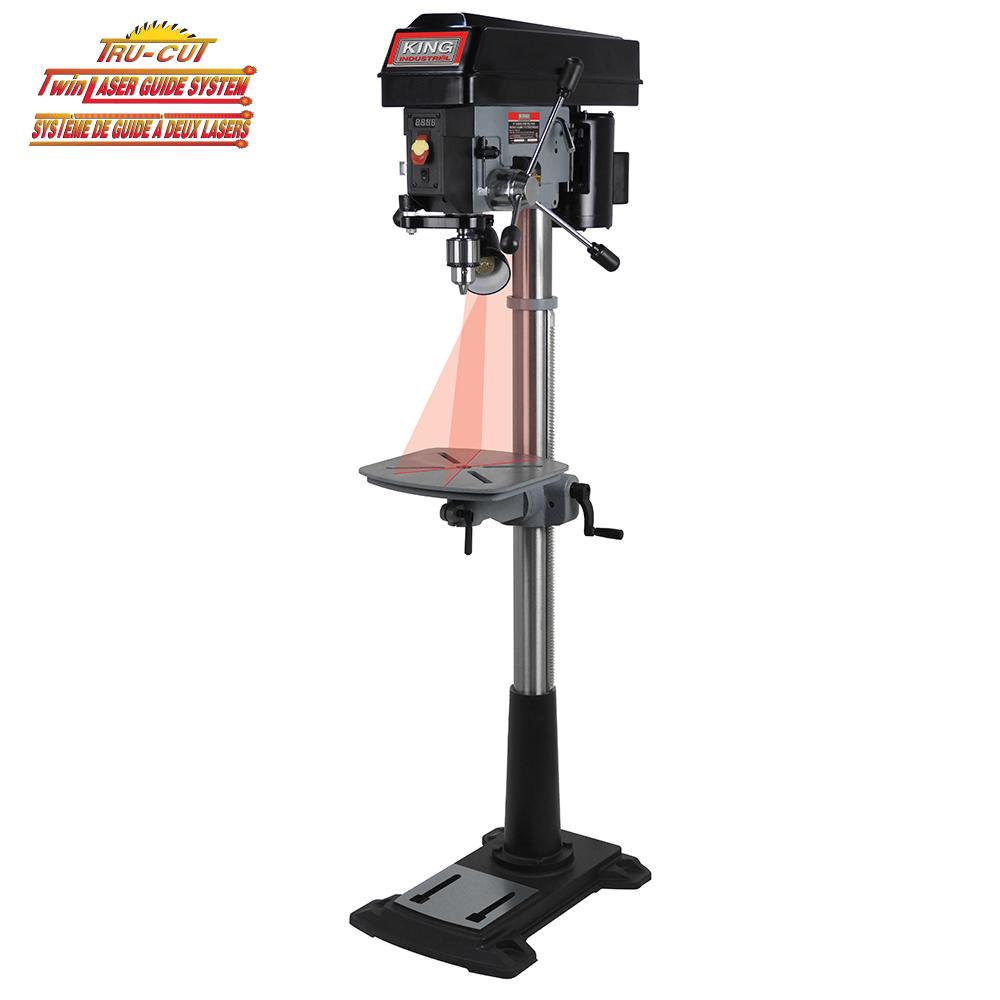

15" Variable speed drill (KC-15HS-VS)
by King Canada
15" Variable speed floor model drill press
Downloads
Product Specification
Item #
KC-15HS-VS
Dimensions
Height: 64.00"
Width: 25.00"
Additional product details
Vendor Item #
KC-15HS-VS
Industrial Category
Power Tools
Industrial Subcategory
Power Drills
Industrial Subtype
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight
14-3/4'' x 25'' x 64'' / 155 lbs
Capacity
5/8''
Chuck size
5/8''
Item Length (inches)
14.75
Item Quantity
1
Item Weight (lbs)
155 lbs
Max. Distance chuck to base
7-1/2''
Max. Distance chuck to column
25''
Motor speed
8.6 Amp. @ 120V, 1 phase, 60 Hz
Overall width across forks
55-1/2'' x 22-1/2'' x 11-1/4'' / 160 lbs
Product Series
KING INDUSTRIAL
Spec 01
Capacity: 5/8"
Spec 02
Chuck size: 5/8"
Spec 03
Swing: 15"
Spec 04
Max. Distance chuck to column: 7-1/2"
Spec 05
Max. Distance chuck to table: 25"
Spec 06
Stroke: 4"
Spec 07
Table size: 12" x 12"
Spec 08
Spindle taper: MT #2
Spec 09
Variable speeds: 2 (280 - 1,100 / 900 - 3,300) RPM
Spec 10
Table t-slots: 9/16"
Spec 11
Motor/voltage: 8.6 Amp. @ 120V, 1 phase, 60 Hz
Spec 12
Assembled dimensions (LxWxH) / Weight: 14-3/4" x 25" x 64" / 155 lbs
Spec 13
Package dimensions (LxWxH) / Weight: 55-1/2" x 22-1/2" x 11-1/4" / 160 lbs
Spindle stroke
MT #2
Steel drum capacity
4''
Suction head lift
15''
Table inserts
12'' x 12''
Table sizes (jointer/planer)
9/16''
UNSPSC Number
23241801
UPC Number
7 72995 01707 2
Variable speed range (optional setting)
2 (280 - 1,100 / 900 - 3,300) RPM
Manufactured By
King Canada
Other Details:
- 4" stroke capacity allows this drill press to drill workpieces up to 4" thick
- Accepts up to 5/8" shanked drill bits
- Comes with 5/8" drill chuck, chuck key, onboard chuck key storage and adjustment hex. keys
- Digital readout for precise spindle speed
- Dual intersecting adjustable laser guides
- Flexible worklight illuminates the work area for maximum visibility
- Mechanical variable speed system with 2 speed ranges, 280-1100 RPM for metal and 900-3300 RPM for wood
- Positive depth stop for quick and easy adjustment of the spindle travel
- Powerful 3/4 HP, 8.6 Amp. motor
