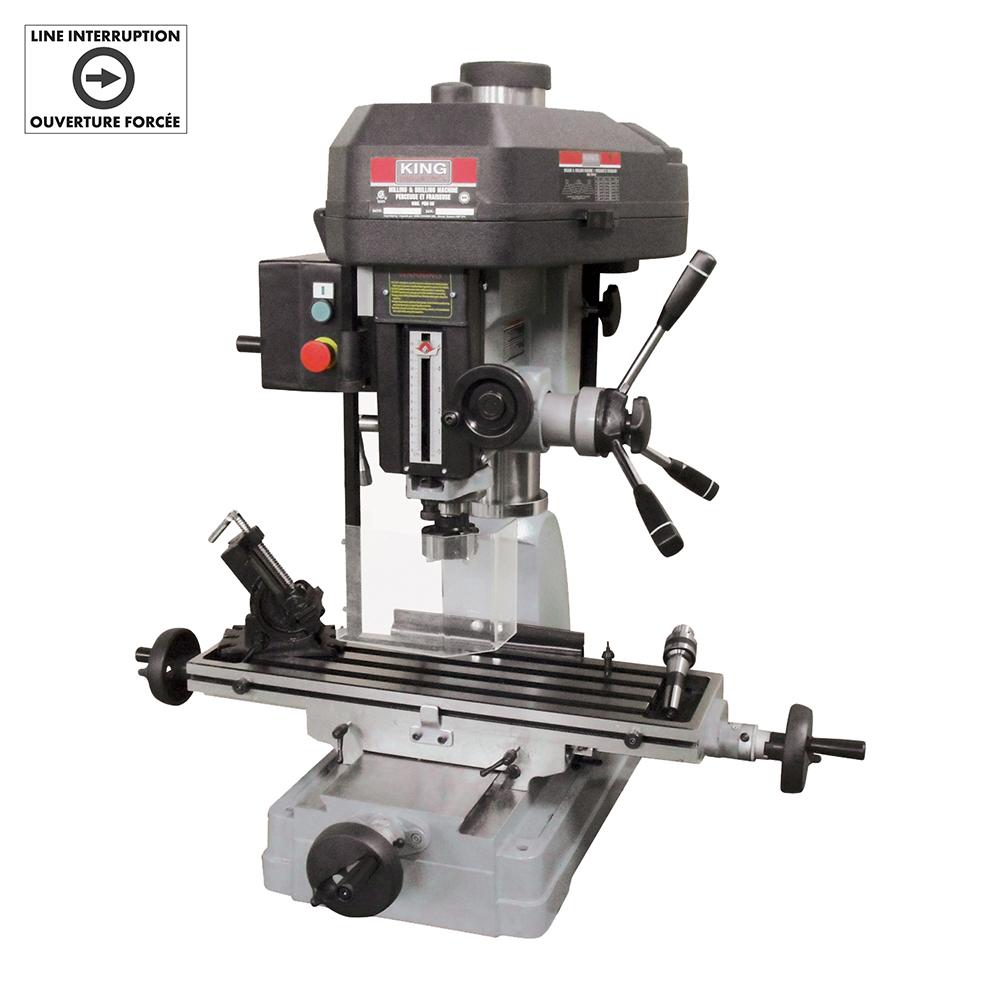

Milling drilling machine (PDM-30)
by King Canada
Milling drilling machine
Product Specification
Item #
PDM-30
Dimensions
Height: 42.00"
Width: 39.00"
Additional product details
Vendor Item #
PDM-30
Industrial Category
Machining
Industrial Subcategory
Machinery
Industrial Subtype
Drilling Machines
Assembled dimensions (LxWxH) / Weight
43'' x 39'' x 42'' / 502 lbs43'' x 39'' x 42'' / 502 lbs
Cross travel
7-1/4''
Diameter of column
4-3/4''
Drilling capacity
1-1/4''
End mill capacity
3/4''
Face mill capacity
3''
Item Length (inches)
43
Item Quantity
1
Item Weight (lbs)
502 lbs
Max. Distance spindle nose to milling table
18-7/8''
Max. Flywheel
17''
Moteur
11 Amp.
Package dimensions (LxWxH) / Weight
30-1/4'' x 32'' x 43-3/8'' / 600 lbs
Product Series
KING INDUSTRIAL
Shipping weight
5/8''
Spec 01
Drilling capacity: 1-1/4"
Spec 02
Max. distance spindle nose to table: 18-7/8"
Spec 03
Swing: 16-1/2"
Spec 04
Spindle taper: R8
Spec 05
Spindle stroke: 5"
Spec 06
Diameter of column: 4-3/4"
Spec 07
Speeds: 12 (150-2,500) RPM
Spec 08
Face mill capacity: 3"
Spec 09
End mill capacity: 3/4"
Spec 10
Max. Longitudinal travel: 17"
Spec 11
Cross travel: 7-1/4"
Spec 12
Working area of table: 8-1/4" x 28-3/4"
Spec 13
Size of T-slot on table: 5/8"
Spec 14
Motor: 11 Amp.
Spec 15
Voltage: 220V, 1 phase, 60 Hz
Spec 16
Assembled dimensions (LxWxH) / Weight: 43" x 39" x 42" / 502 lbs43" x 39" x 42" / 502 lbs
Spec 17
Packaging dimensions (LxWxH) / Weight: 30-1/4" x 32" x 43-3/8" / 600 lbs
Speed (wheel / motor)
12 (150-2,500) RPM
Spindle speeds
5''
Spindle stroke
R8
Suction head lift
16-1/2''
UNSPSC Number
23181502
UPC Number
7 72995 30001 3
Variable speeds (wood)
220V, 1 phase, 60 Hz
Wire groove diameters
8-1/4'' x 28-3/4''
Manufactured By
King Canada
Other Details:
- Comes with 3" face cutter, 1/2" chuck with key, 3-1/2" angle vise and safety guard
- Head swivels 360° and is easily raised and lowered
- Magnetic line interruption switch needs a restart after a power failure
- Safety guard with limit switch protection
- Spindle is equipped with four heavy-duty tapered roller bearings
- Table control hand wheels have large micrometer dials graduated in .001"
