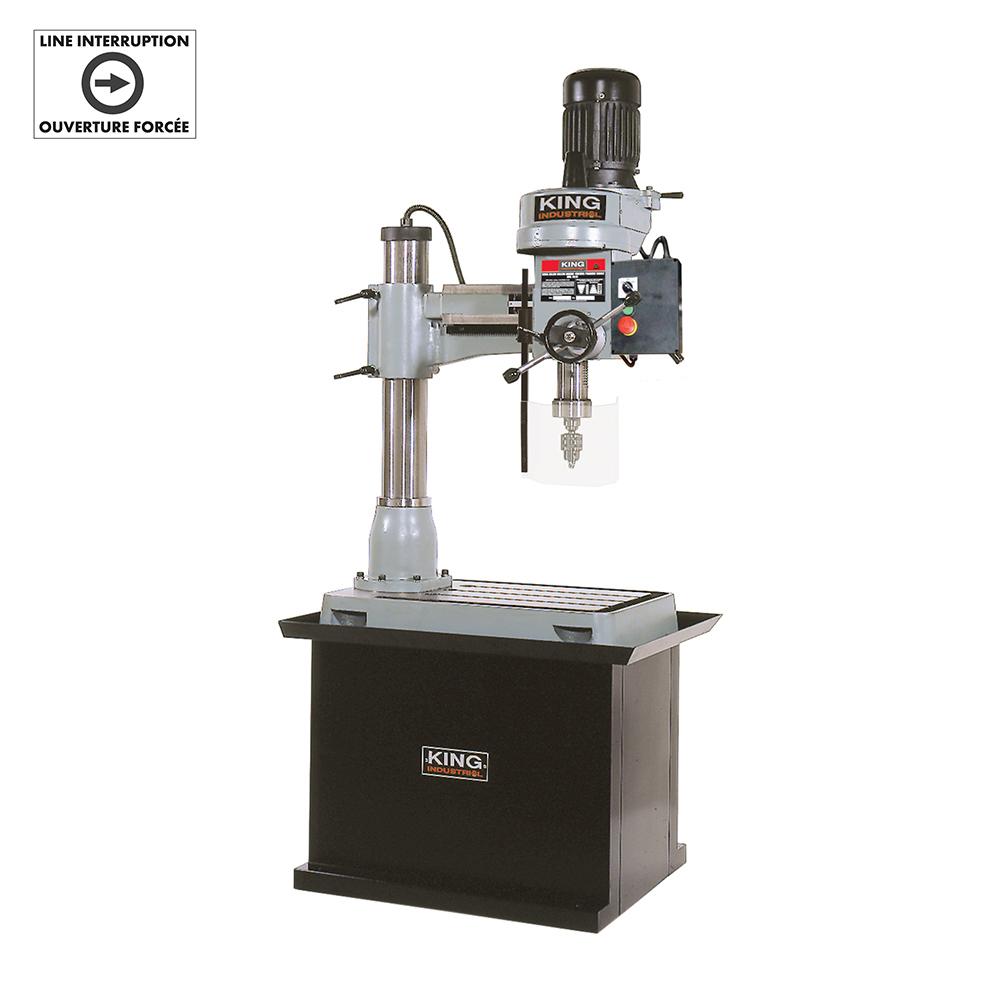

Radial drilling machine with safety guard (KC-35)
by King Canada
Radial drilling machine with safety guard
Product Specification
Item #
KC-35
Dimensions
Height: 90.00"
Width: 24.00"
Additional product details
Vendor Item #
KC-35
Industrial Category
Power Tools
Industrial Subcategory
Power Drills
Industrial Subtype
Floor Standing and Bench Mounted Drill Presses
Column diameter
4-1/2''
Dimensions (LxWxH)
34'' x 24'' x 90''
Drilling capacity
1-1/4''
Head travel
14''
Item Length (inches)
34
Item Quantity
1
Item Weight (lbs)
638 lbs
Max. Distance spindle nose to milling table
21-1/4''
Moteur
8.8 Amp.
Product Series
KING INDUSTRIAL
Shims
638 lbs
Shipping weight
5/8''
Spec 01
Drilling capacity: 1-1/4"
Spec 02
Max. Distance spindle nose to table: 21-1/4"
Spec 03
Swing: 38-1/2"
Spec 04
Spindle: MT #3
Spec 05
Spindle stroke: 5-1/4"
Spec 06
Column diameter: 4-1/2"
Spec 07
Speeds (RPM): 5 (340-3,000)
Spec 08
Table dimensions: 21-5/8" x 19-5/8"
Spec 09
Head travel: 14"
Spec 10
Size of T-slot on table: 5/8"
Spec 11
Motor: 8.8 Amp.
Spec 12
Voltage: 220V, 1 phase, 60 Hz
Spec 13
Dimensions (LxWxH): 34" x 24" x 90"
Spec 14
Shipping weight: 638 lbs
Speeds
5 (340-3,000)
Speeds (RPM)
MT #3
Spindle speeds
5-1/4''
Suction head lift
38-1/2''
T-slot (4 way)
21-5/8'' x 19-5/8''
UNSPSC Number
23241801
UPC Number
7 72995 35000 1
Variable speeds (wood)
220V, 1 phase, 60 Hz
Manufactured By
King Canada
Other Details:
- Complete with forward reverse switch, 1/2" chuck with key, safety guard and stand
- Head swivels 180° and is easily raised and lowered
- Head travels up to 14"
- Magnetic line interruption switch and safety guard with limit switch protection
- Magnetic line interruption switch needs a restart after a power failure
- Powerful 1.5 HP single phase motor
- Safety guard with limit switch protection
- Spindle is equipped with heavy-duty tapered bearings
