Other Details:

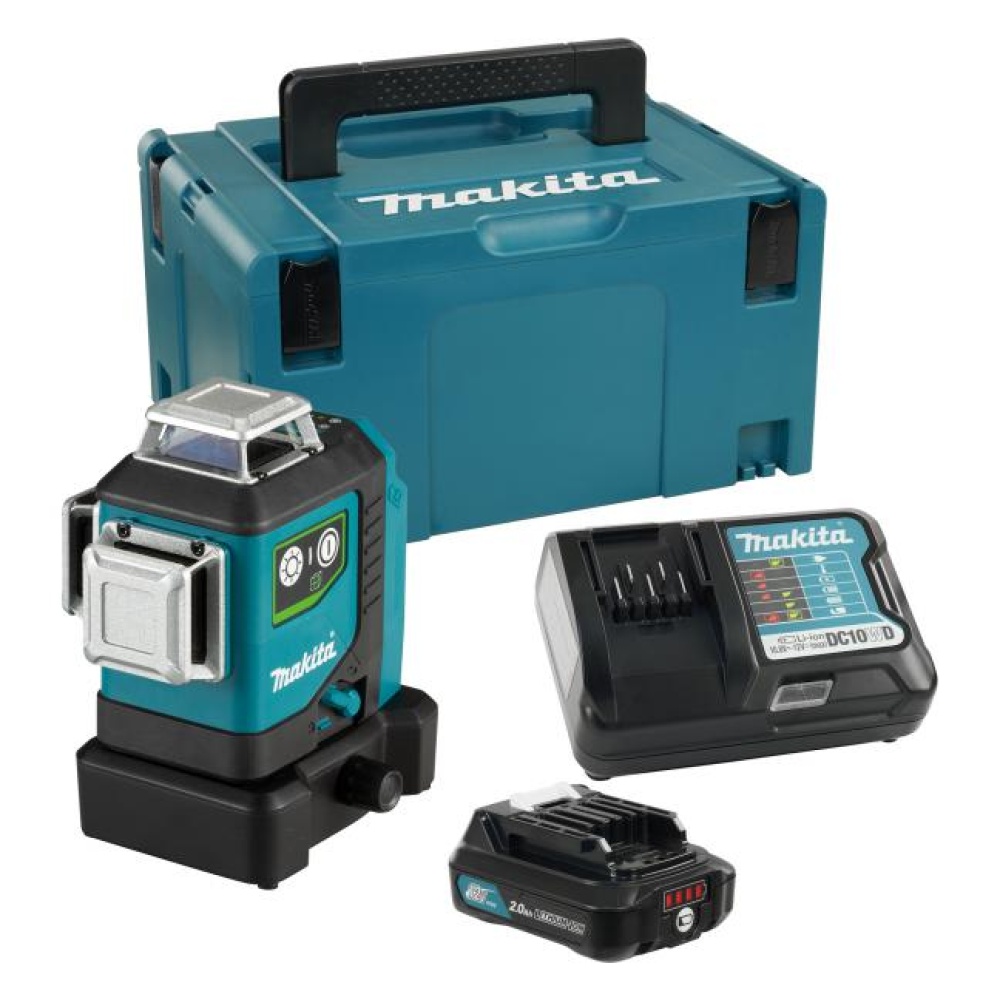

• 12Vmax CXT Green Multi Line Laser
• 3-brightness mode selection: Bright?Normal?Eco
• 4 Horizontal lines & 4 Vertical lines
• 6-laser line mode selection: 2V(F/R)4H?4V4H?4V?4H?2V(F/R)?2V(L/R)
• Both power sources can be directly connected to SK700GD/ SK700D
• Control method: Magnet damper method control
• Eccentric rotation mechanism enables the laser body to rotate without changing the position of the defined plumb point, enabling easy line positioning
• Even high power-consuming green laser lines can keep being projected over a long continuous operation
• Features 4 horizontal lines and 4 vertical lines; three full 360-degree lines can be projected; 6 laser line mode selection and 3 brightness mode selections
• Full 360-degree line is created by letting the laser from a light source reflect on a cone mirror
• High accuracy +/-2 mm at 10 m
• High brightness green laser for increased visibility in outdoor or bright job sites
• High brightness green laser for increased visibility in outdoor or bright jobsites
• Indication method: Automatic vertical line indication by gimbal mechanism
• Laser light output power: less than 2.0 mW
• Powered by a 12Vmax CXT Li-Ion battery or ADP09 adapter loaded with eight AA batteries
• Professional laser with high accuracy +/- 2 mm at 10 metres and water resistance compatible with Makita XPT eXtreme Protection Technology (IP54 rated for body)
• Rotary base with eccentric rotation mechanism reduces setup time
• Three full 360-degree lines can be projected
• Vertical laser lines can rotate around the defined plumb point up to 10 degrees left and right (with a dial for fine adjustment)
• Water-resistance compatible with XPT (IP54 rated for body)
