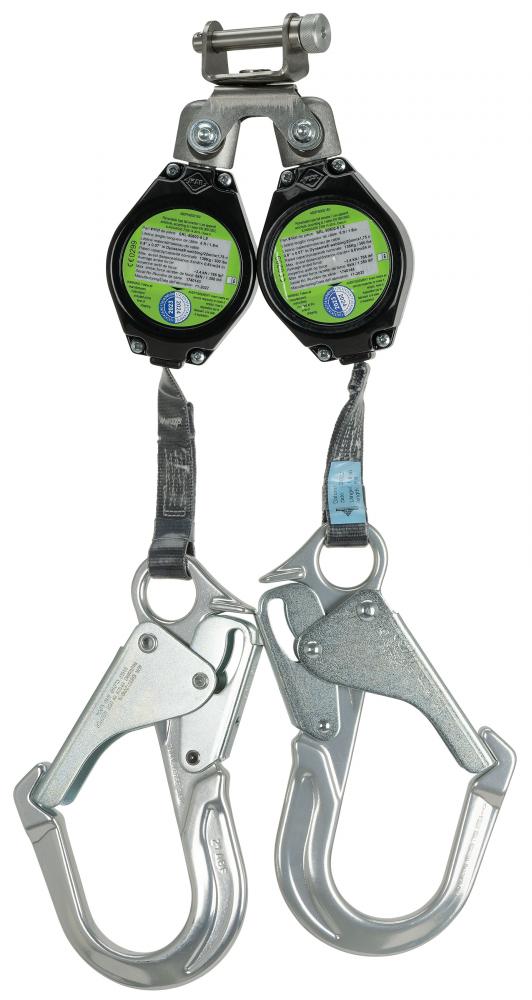

Leading-Edge Self Retracting Devices (V845526106LE)
by Peakworks
Self-retracting devices that are third-party certified to the ANSI Z359.14-2021 standard for leading-edge applications (LE) as well as overhead use. Aluminum housing construction is lightweight yet durable and can be used in both horizontal and vertical applications. The attachment point includes a swivel harness attachment connector that conveniently connects to the user’s harness or swivel with carabiner to connect to the anchor point.
Product Specification
Item #
V845526106LE
Dimensions
Additional product details
Vendor Item #
V845526106LE
Industrial Category
Safety
Industrial Subcategory
Fall Protection
Industrial Subtype
Self-Retracting Lifelines
Anchor Hook Material
Aluminum
Anchor Hook Type
Form Hook
Average Arrest Force
678 lbf
Body Hook Type
Connection Pin
Capacity
310 lb
Class Type
Class 2
Color
Black/Green
COO (2 digit code)
DE
Each Depth (in)
5.45
Each Length (in)
14.15
Each Qty.
1
Each Weight (lb)
8.90
Each Width (in)
10.35
Gate Opening (in.)
2.5"
Housing Material
Aluminum
HTS (Harmonized Tariff Schedule) Code
7616.99.5190
Leading Edge
Yes
Leg Type
Twin
Length
6 ft
Lifeline Material
Dyneema®
Master Pack Code
'10032738046149
Master Pack Qty.
1
Maximum Total Arrest Distance
1.07 m
Maximum Total Arrest Distance - Non-Leading Edge a
42 in
Minimum Fall Clearance - Leading Edge application
13 ft
Minimum Fall Clearance - Leading Edge applications
3.90 m
Minimum Fall Clearance - Non-Leading Edge applicat
1.83 m
Minimum set back distance from edge - Leading Edge
12 in
Pallet Qty
1
Rescue and Recover - SRL-R
No
Special Features
Sewn-in Indicator
Standards
ANSI Z359.14-2021 Class 2|OSHA
UOM
EA
Webbing/Cable Thickness
0.07 in
Webbing/Cable Width
1 in
Manufactured By
Peakworks
Other Details:
- Anchor point incorporates a heavy duty and durable swivel eye
- Approved for both vertical and horizontal applications
- Features a sewn-in indicator on the lifeline for maximum safety
- Lightweight aluminum housing is durable and built to last
- Provides additional protection when working near a leading edge where sharp or abrasive surfaces may be prevalent
