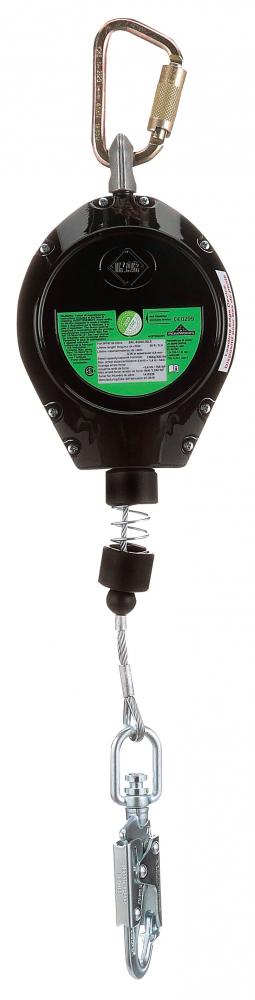

Leading Edge Series - Single SRL LE - Class B - Cable (V845533030LE)
by Peakworks
The PeakWorks Leading Edge Series Single Self-Retracting Lifeline (SRL) – Class B – Cable is designed to protect the worker when operating near an edge and where a fall hazard exists. The cable retracts up into the lightweight aluminum housing to eliminate slack in the lifeline and prevents users from falling more than a few inches; The self-retracting device is manufactured using 3/16" (5mm) diameter galvanized cable, providing maximum protection. This SRL features a centrifugal braking system, a steel carabiner, 3/4" snap hook, and a 300 lbs. (136kg) combined weight capacity. It is certified for use in vertical and horizontal applications and is tested and approved for foot level tie-off. Available in four cable lengths - V845533020LE: 20 ft. (6m), V845533030LE: 30 ft. (9m), V845533040LE: 40 ft. (12m), V845533060LE: 60 ft. (18m).
Product Specification
Item #
V845533030LE
Dimensions
Additional product details
Vendor Item #
V845533030LE
Industrial Category
Safety
Industrial Subcategory
Fall Protection
Industrial Subtype
Self-Retracting Lifelines
Anchor Hook Material
Steel
Anchor Hook Type
Snap Hook
Average Arrest Force
765 lbf (3.4kN)
Body Hook Type
Carabiner
Capacity
300 lb
Class Type
B
Color
Black
COO (2 digit code)
DE
Each Depth (in)
5
Each Length (in)
14.50
Each Qty.
1
Each Weight (lb)
13.50
Each Width (in)
10.50
Gate Opening (in.)
0.75
Has MSDS
No
Housing Material
Aluminum
HTS (Harmonized Tariff Schedule) Code
7616.99.5090
Leading Edge
Yes
Leg Type
Single
Length
30 ft
Lifeline Material
Galvanized Steel
Master Pack Qty.
1
Maximum Total Arrest Distance
1.40 m
Maximum Total Arrest Distance - Non-Leading Edge a
54 in
Minimum Fall Clearance - Leading Edge application
13 ft
Minimum Fall Clearance - Leading Edge applications
4 m
Minimum Fall Clearance - Non-Leading Edge applicat
2.59 m
Minimum set back distance from edge - Leading Edge
20 in
Pallet Qty
1
Rescue and Recover - SRL-R
No
Special Features
Lightweight
Standards
CSA Z259.2.2-98 Type 2|LE certified|OSHA|ANSI Z359.14-2014, Class B
UNSPSC
46182301
UOM
EA
Webbing/Cable Width
3/16 in
Manufactured By
Peakworks
Other Details:
- 30 Foot Leading Edge Self Retracting Lifeline
- APPLICATION - Certified for use in vertical and horizontal applications and is tested and approved for foot level tie-off
- CAPACITY - Holds a 300 lbs. (136kg) weight capacity (combined weight of person, tools, clothing, etc.)
- DESIGN – PeakWorks Leading Edge Series Single Self-Retracting Lifeline (SRL) – Class B – Cable offers an inertial breaking mechanism that locks into place to immediately stop a fall; Made from a lightweight aluminum housing for durability.
- FEATURES – 30 ft. (9m) self-retracting device is manufactured using 3/16" (5mm) diameter galvanized cable, providing maximum protection.
- FEATURES – Ergonomically designed for ease of use and ideal for direct connection to most harnesses, this SRL features a centrifugal braking system, a steel carabiner for attachment to the anchor point, a 3/4" snap hook, and a visual load indicator
- OPTIONS - Available in four cable lengths - V845533020LE: 20 ft. (6m), V845533030LE: 30 ft. (9m), V845533040LE: 40 ft. (12m), V845533060LE: 60 ft. (18m)
- Peakworks 30 ft Leading Edge Series SRL
- Snap Hook
