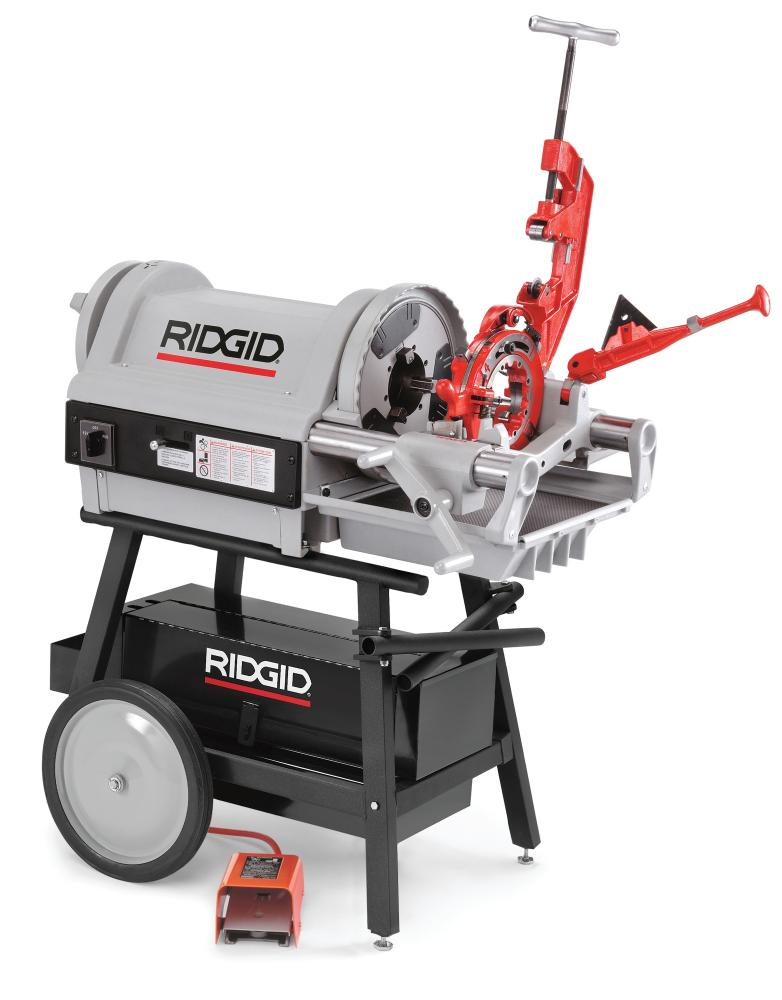

1/4" - 4" BSPT Hammer Chuck Machine (26112)
by RIDGID Tool Company
The Model 1224 Pipe Threader threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
Product Specification
Item #
26112
Dimensions
Additional product details
Vendor Item #
26112
Industrial Category
Power Tools
Industrial Subcategory
Plumbing Power Tools
Industrial Subtype
Pipe Threading and Cutting Machines
Accessory SKUs
22563 / 26137 / 26142 / 26147 / 26157 / 26162 / 26167 / 26187 / 26212 / 26217 / 26707 / 31827 / 31832 / 32237 / 32242 / 33072 / 33077 / 33642 / 34157 / 34162 / 34167 / 34172R / 34177R / 34182 / 34577 / 44992 / 44997 / 45002 / 51005 / 55447 / 55452 / 57492
Allow Standard Pack to be Broken
False
Bolt Capacity
1/4''-2'' (6mm-50mm).
Brand
RIDGID
Chuck
Hammer-type with replaceable rocker-action jaw inserts.
Country of Origin
US
Gear Box
Two-speed gear box with a 3:1 ratio.
Hazardous Material
False
HTS Code
8459708080
Included Components
26137: 911 1/4" - 2" BSPT 1224 Die Head, Self-Opening, RH; 26147: 913 1/4" - 2" BSPT 1224 Die Head, Quick-Opening, LH; 33642: 1224 H.S. Dies BSPT; 66665: 1/2" - 3/4'' universal alloy set; 66670: 1-2'' universal alloy set
Item Weight (lbs)
463 LB / 210 KG
Max Operating Temperature
0 F
Model Number
1224
Motor Amperage
15
Motor Control
Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Motor RPM
36/12
Motor Type
AC Induction Single Phase
Motor Voltage
115 VLT
Motor Wattage
1700
Nominal Pipe Capacity
1/4''-2'' (6mm-100mm) @ 36 RPM, 2-1/2''-4'' (65mm-100mm) @ 12 RPM, 4''-6'' (100mm-150mm) with 161 Geared Threader.
Oiling
Through die head
Oiling Pump
Self-priming, gerotor-type, automatic-reversing, constant-flow.
Product Warranty
Full Lifetime Warranty
REACH Compliant
No
Rear Centering Device
Cam action.
Similar SKUs
26092/26097/26102/26107/26122/26127/29858/29863/31442
UPC Code
095691261120
Wattage
1700
Weight
463 LB / 210 KG
Manufactured By
RIDGID Tool Company
Other Details:
- 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
- A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
- An induction motor helps minimize noise.
- Constant and proper lubrication of dies and workpiece with through-head oiling.
