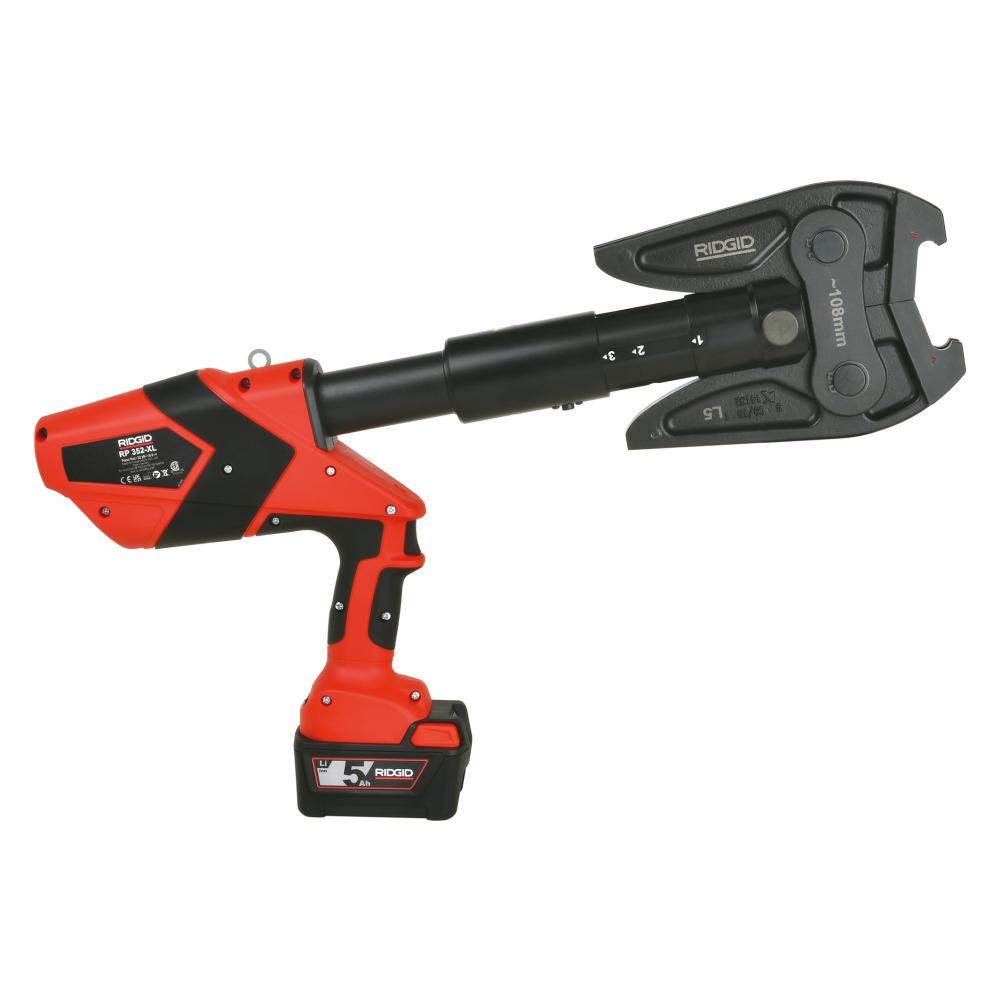

RP 352-XL Press Tool Kit (RP 352-XL Tool, 32 kN-XL Actuator, Case, 18V 5.0 Battery and 230V Fast-Cha (75803)
by RIDGID Tool Company
The RIDGID RP 352-XL is the lightest and fastest (108 mm in only 12 secs) pistol grip XL Press Tool allowing the users to press XL-size M-fittings in a single cycle without requiring a second pressing and actuator.
Product Specification
Item #
75803
Dimensions
Additional product details
Vendor Item #
75803
Industrial Category
Hand Tools
Industrial Subcategory
Plumbing Equipment
Industrial Subtype
Pressing Tools
ANSI
none
Application
Profession Plumbing, Commercial Plumbing, Industrial Plumbing, Sprinkler Installation
ASME
none
ASSE
none
ASTM
none
AWWA
none
Battery Advertised Voltage
18V
Battery Composition
Lithium Ion
Battery Included
1
Battery Life
n/a
Battery Packaging
Batteres packed with equipment
Battery Required
Yes
BlueTooth
Yes
Bluetooth / App
Yes / RIDGID Link
Brand
RIDGID
CA Prop 65 Cancer
No
CA Prop 65 Chemcial Names
n/a
CA Prop 65 Reproductive Harm
No
CA SCAQMD
No
Capacity
12-108 mm
Capacity Max
108 IN / 2743.2 MM
Capacity Min
12 IN / 304.8 MM
Color
Red, Black
Compatible Devices List
RIDGID 18V Batteries, RIDGID 32 kN Standard Press Jaws, RIDGID 32 kN-XL Press Jaws, RIDGID Mains Adapters (5m cable).
Force Output
32 kN
GHS
No
Head Rotation
350°
Height
54 IN / 1371.6 MM
ISO
Yes
LED Light
Yes
Length
7.5 IN / 54 MM
Light
LED
Material
Aluminum
Max Operating Temperature
50 F / 10 C
Min Operating Temperature
-10 F / -23.33333 C
Model Number
RP 352-XL + ACT
Motor Amperage
4.0999999999999996
Motor Horsepower
n/a
Motor RPM
23700
Motor Type
DC Brushed Permanent Magnet
Motor Voltage
18 VLT
Motor Wattage
n/a
NSF
none
OLED Screen
Yes, Integrated
Package Quantity
1
Packaging Type
Box
Power
Battery Powered
Power Source
18 V 5.0 Ah Li-Ion Battery (Default)
Pressure Sensor
Yes, Press-CHECK!
Product Line
Press Tool / XL Press
QuickSwitch™ Stroke
3 positions - 40 / 80 / 100 mm
REACH Compliant
Yes
RoHS Regulations
No
SDS Required
Yes
Service Interval
32K Press Cycles
Shape
Pistol
Similar SKUs
75758/75763/75793/75798/75823/75828/75833/75838/75843
Type
Pistol Grip
UPC Code
095691758033
Weight
13.5 LB / 6.12245 KG
Weight w/o Battery
3,8 kg
WHMIS Classification
n/a
Width
28.5 IN / 7.5 MM
WiFi
No
Manufactured By
RIDGID Tool Company
Other Details:
- 350° Head Rotation - 350˚ Head Rotation allowing the user to press from practically any angle.
- Advanced Electronics - Instant access to tool and usage information through Bluetooth (w/ Free RIDGID Link App) and the integrated OLED-screen.
- Fast FWD XL-Press: 108 mm M-Press in only 12 secs, with RIDGID Fast-FWD Press Technology.
- Next Level Ergonomics: Lightest Pistol Grip XL Tool weighing only 4,4 kgs. Offers Ultimate Tool Balance and User Comfort.
- One-Shot XL-Press, unparalelled efficiency! Press 66.7 up to 108 mm M-profile fittings in only one press cycle and without using a 2nd Actuator.
- Secure Press w/ Press-CHECK!: Integrated Pressure Sensor Monitors and Confirms Every Single Pressing. Warns in case of a failure. For Your Peace of Mind!
- Super Versatitle EZ Switch Stroke: Easily Switch Between XL and Smaller Sizes. No Second Tool Needed For Small Diameter Pressing.
