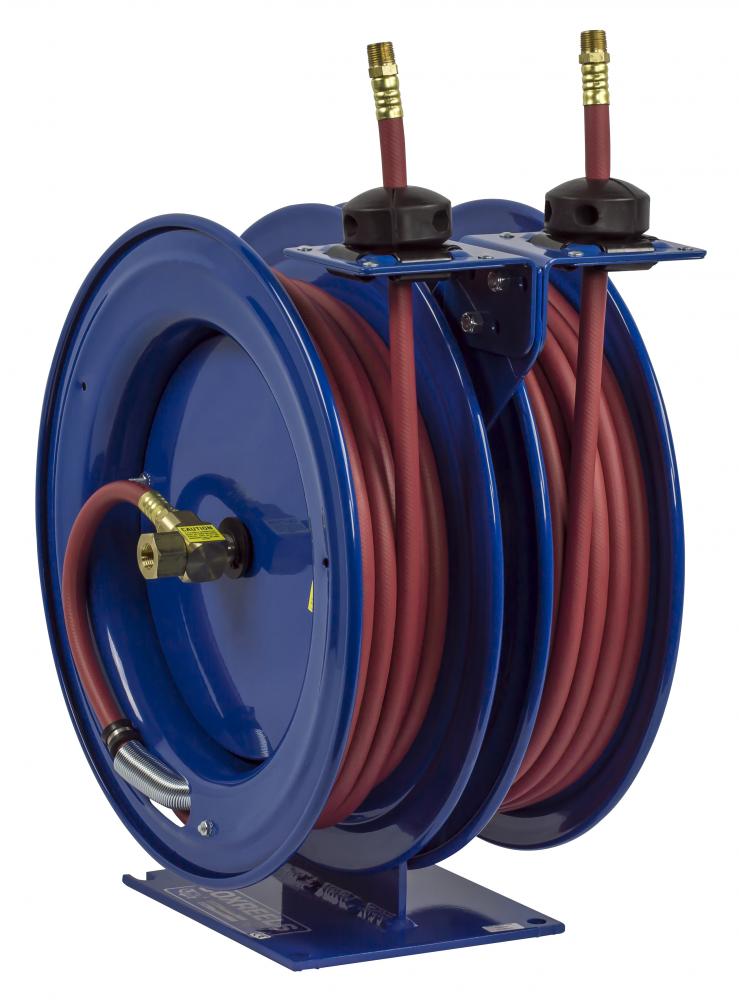

Dual Purpose Spring Driven Hose Reel 3/8inx50ft 300PSI (C-LP-350-350)
by Coxreels
Coxreels C-LP-350-350 Dual Purpose Spring Rewind Hose Reel for air/water: 3/8" I.D., 50' hose each, 300 PSI
Product Specification
Item #
C-LP-350-350
Dimensions
Height: 18.63"
Width: 10.50"
Additional product details
Vendor Item #
C-LP-350-350
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Spring Return Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
17.00
Item Quantity
1
Item Weight (lbs)
78
Ordering Quantity
1
Product Series
C Series
Spec 01
ID: 3/8"
Spec 02
OD: 5/8"
Spec 03
Length: 50'
Spec 04
Reel Inlet: 3/8" (F)NPT
Spec 05
Hose Material: PVC
Spec 06
PSI: 300
UPC Number
0674255712041
Manufactured By
Coxreels
Other Details:
- 1/4" STEEL BASE - Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for dual hose applications, each reel operates independently.
- 1” solid steel axle & lubricated precision bearings for smooth rotation
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Compact two reel assembly for dual hose applications, each reel operates independently
- Durable proprietary CPC™ powder coat process
- Enclosed factory tuned & matched cartridge-style spring motor
- Guide arm adjusts to wall, floor & overhead positions
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Multi-position lock ratchet mechanism secures hose at desired length
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
- Professional grade heavy duty steel construction
- PVC red hose
- Rolled edges & ribbed discs provide strength & safety
- Single expanded, 1/4” steel mounting base for increased stability & space efficiency
- SWIVEL - Two external fluid path with machined solid brass 90˚full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Swivel Seals: NITRILE
- Two external fluid paths with machined from solid brass 90° full-flow NPT swivel inlets
