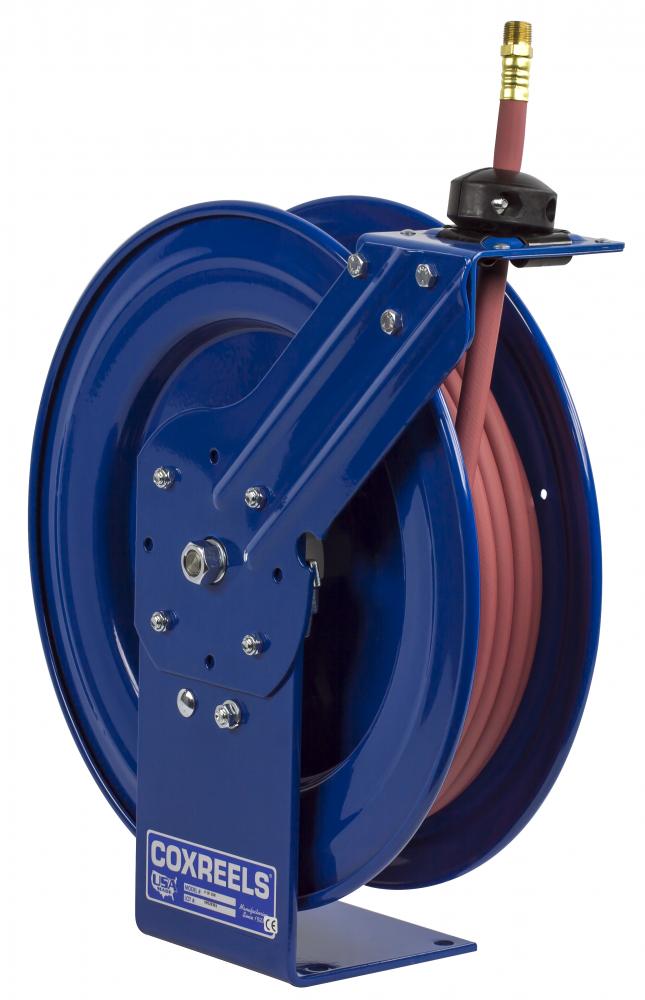

Safety Series Spring Rewind Hose Reel 3/8in 50ft hose (EZ-P-LPL-350)
by Coxreels
Coxreels EZ-P-LPL-350 Safety Series Spring Rewind Hose Reel: 3/8" I.D., 50' hose capacity, less hose, 300 PSI
Product Specification
Item #
EZ-P-LPL-350
Dimensions
Height: 18.63"
Width: 6.75"
Additional product details
Vendor Item #
EZ-P-LPL-350
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Spring Return Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
17.13
Item Quantity
1
Item Weight (lbs)
36
Ordering Quantity
1
Product Series
EZ-P Series
Spec 01
ID: 3/8"
Spec 02
OD: 5/8"
Spec 03
Length: 50'
Spec 04
Reel Inlet: 3/8" (F)NPT
Spec 05
N/A
Spec 06
PSI: 300
UPC Number
0674255723993
Manufactured By
Coxreels
Other Details:
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- 1” solid steel axle & lubricated precision bearings for smooth rotation
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Controlled retraction speed up to 80% slower
- Durable proprietary CPC™ powder coat process
- Enclosed factory tuned & matched cartridge-style spring motor
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
- EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Multi-position lock ratchet mechanism secures hose at desired length
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Solid one piece, heavy gauge 1⁄4” steel base & support post for maximum stability
- Sturdy single pedestal reel with space saving designfacilitates workplace organization
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Swivel Seals: NITRILE
UPC Number
