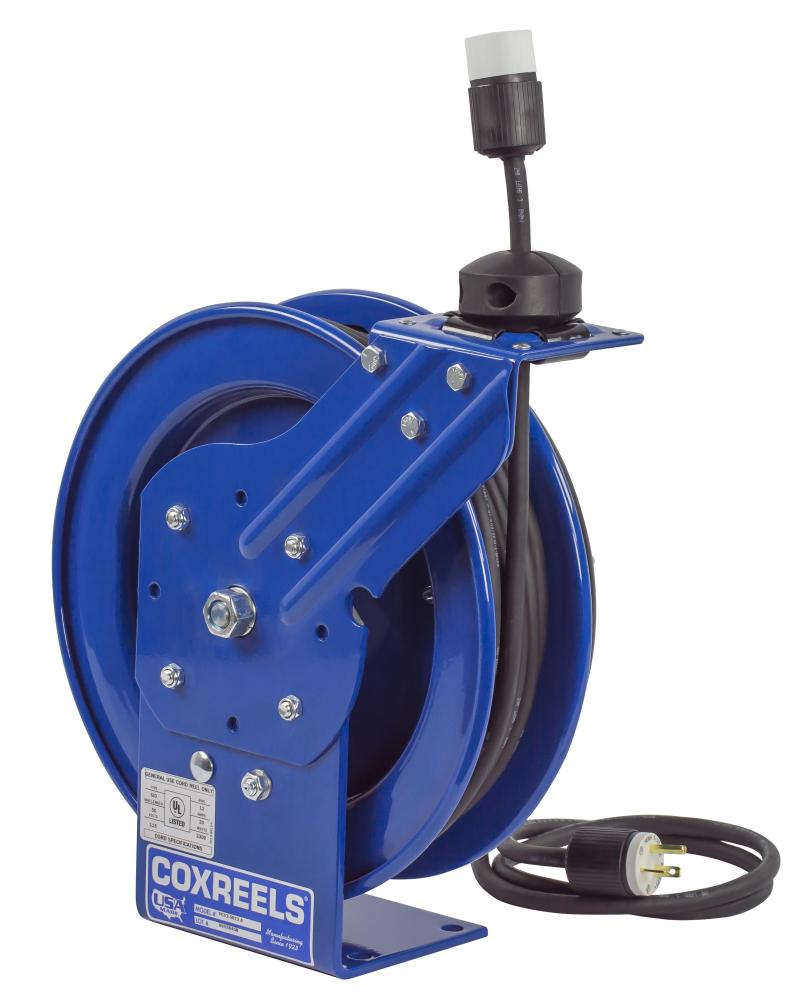

Spring Driven Cord Reel Single Industrial Rec 16GAx50ft (PC13-5016-A)
by Coxreels
Coxreels PC13-5016-A Power Cord Spring Rewind Reels: Single Industrial Receptacle, 50' cord, 16 AWG
Product Specification
Item #
PC13-5016-A
Dimensions
Height: 14.88"
Width: 8.50"
Additional product details
Vendor Item #
PC13-5016-A
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Spring Return Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
13.00
Item Quantity
1
Item Weight (lbs)
36
Ordering Quantity
1
Product Series
PC Series
Spec 07
AWG / No. Cond: 16/3
Spec 08
Length: 50'
Spec 09
Amps: 13
Spec 10
Volts: 115
Spec 11
Cord Type: SJO
UPC Number
0674255921085
Manufactured By
Coxreels
Other Details:
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- COMPONENT COVER - External, easily accesible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- Durable proprietary CPC™ powder coat process
- Electrical current runs through a 25AMP / 600V rated slip ring
- Enclosed factory tuned & matched cartridge-style spring motor
- External heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
- Guide arm adjusts to wall, floor & overhead positions
- Include 5' lead cable & grounding plug
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Multi-position lock ratchet mechanism secures cord at desired length
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cord stop, 5' lead cable and grounding plug, sturdy permanently lubricated precision bearings, and single industrial receptacle
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Single industrial receptacle
- Single pedestal cord reel with space saving designfacilitates workplace organization
- SJO black cord
- Solid one piece, heavy gauge 1⁄4" steel base & support post for maximum stability
