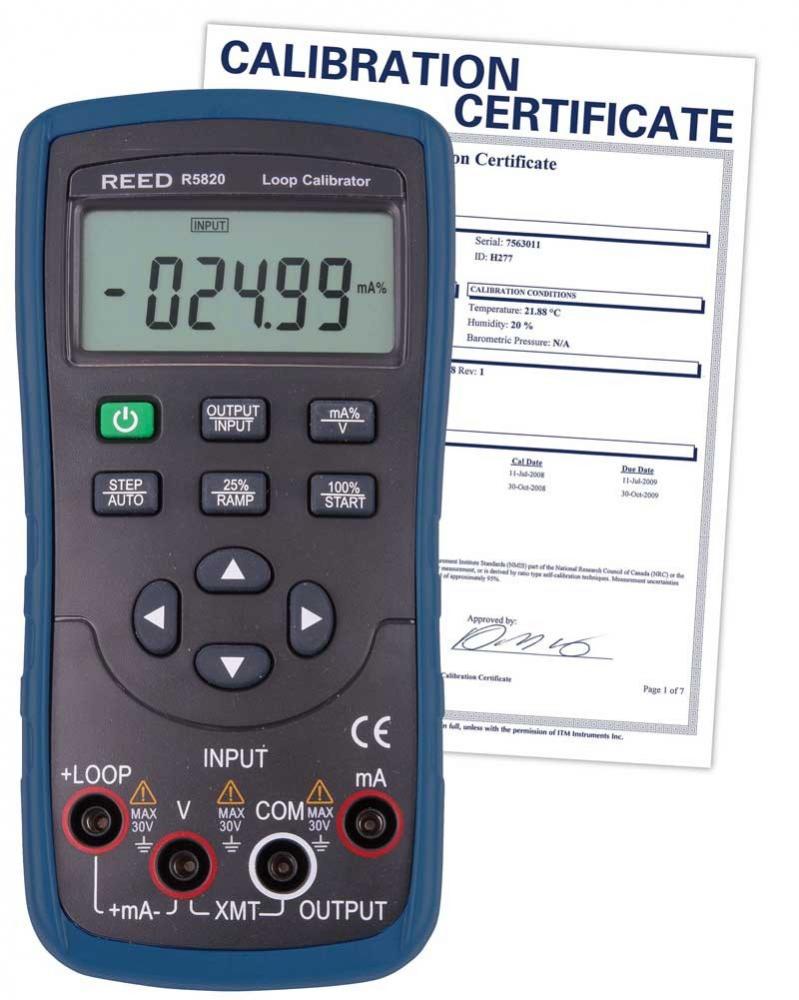

REED R5820-NIST Loop Calibrator, includes NIST Traceable Certification (R5820-NIST)
by ITM - Reed Instruments
This loop calibrator features mA sourcing, simulation and measurement. It has a 24V loop power supply and selectable step or ramp outputs. This product includes NIST Traceable Certificate with full Data and Uncertainties.
Product Specification
Item #
R5820-NIST
Dimensions
Additional product details
Vendor Item #
R5820-NIST
Industrial Category
Test Instruments
Industrial Subcategory
Process Monitoring
Industrial Subtype
Handheld Loop and Process Calibrators
Bullet 1
mA sourcing and measurement
Bullet 2
Large, 5-digit LCD display
Bullet 3
0-28 VDC measurement to check loop voltage
Bullet 4
Basic measurement/sourcing accuracy of 0.02% and 0.05%, respectively
Bullet 5
Simulate mA and % with 0.001% display span
Bullet 6
Selectable step or ramp outputs
Bullet 7
Internal 24V loop power supply
Bullet 8
Low battery indicator and auto shut off
Includes
Test leads, Alligator clips, Protective holster, Batteries, NIST Traceable Certification
Item Height (inches)
1.9
Item Length (inches)
7.1
Item Quantity
1
Item Weight (lbs)
0.5125
Item Width (inches)
3.5
Package Height (inches)
2.4
Package Length (inches)
7.6
Package Weight (lbs)
1
Package Width (inches)
4
PDF 1
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r5820/datasheet/r5820-datasheet.pdf
PDF 2
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r5820/manual/r5820-manual.pdf
Manufactured By
ITM - Reed Instruments
