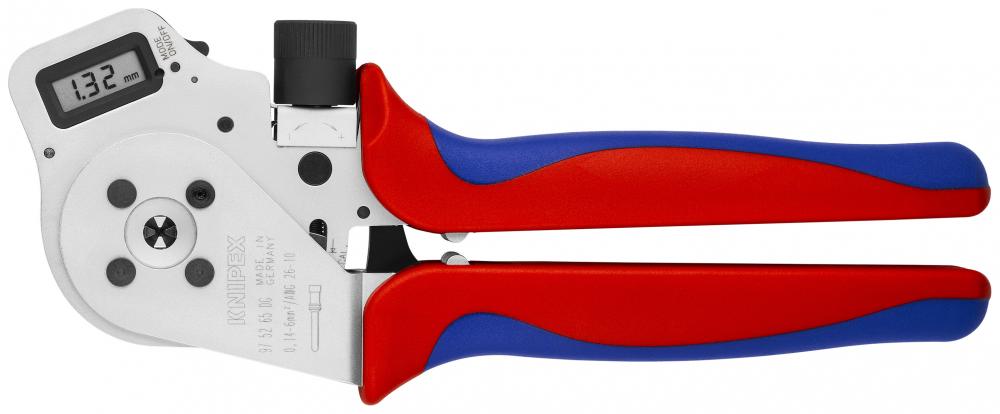

10 3/4" Digital Crimping Pliers - Four-Mandrel For Turned Contacts (97 52 65 DG)
by Knipex Tools
Product Specification
Item #
97 52 65 DG
Dimensions
Height: 3.35"
Width: 8.85"
Additional product details
Vendor Item #
97 52 65 DG
Industrial Category
Hand Tools
Industrial Subcategory
Crimping Tools
Industrial Subtype
Cable and Wire Crimping Tools
1000 Volt Insulated
No
Accessory Part Number
97 59 65 2
Brand Name
KNIPEX
Chemical
Diisononyl Phthalate
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Crimping Capacity - AWG
26 to 10
Crimping Capacity - mm2
0.14 to 6.0
Crimping Positions
1
Crimping Profile
Four-Mandrel crimp
Data Sheet Filename
975265dg_en.pdf
Diameter Max
7.5 mm
ECCN
EAR99
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6030
Included Products/Items
Other Surface Finish: Chrome Plated
Item Height (inches)
3 1/3"
Item Height inches
3 1/3"
Item Length (inches)
10.75
Item Length inches
10 3/4"
Item Quantity
1
Item Weight (lbs)
2.795
Item Weight lbs
2.795
Item Width (inches)
8 7/8"
Item Width inches
8 7/8"
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium electric steel, oil-hardened
Other Surface Finish
Chrome Plated
Package Height (inches)
3.35"
Package Height inches
3.35"
Package Length (inches)
10.8"
Package Length inches
10.8"
Package Weight (lbs)
2.795
Package Weight lbs
2.795
Package Width (inches)
8.85"
Package Width inches
8.85"
Packaging Height mm
80 mm
Packaging Length mm
270 mm
Packaging Width mm
215 mm
Prop 65 Conflict
Yes
Prop 65 Language Indicator
English
Prop 65 Warning English
WARNING: This product can expose you to chemicals including Diisononyl Phthalate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach
contains SVHC
RoHS
not applicable
Spring Loaded
Yes
Tool Attributes
Capacity - 0.14 to 6 mm2 and 25 to 10 AWG
, Features a digital display for preset crimping capacities
, For crimping turned contacts
, Four mandrel crimping pliers for turned contacts
Tool Height mm
80 mm
Tool Length mm
250 mm
Tool Weight grams
633 g
Tool Width mm
86 mm
Unit Of Measure
Each
UNSPSC
27112147
UNSPSC Number
27112147
UOM Qty
1
UPC Code
843221015916
Manufactured By
Knipex Tools
Other Details:
- Capacity - 0.14 to 6 mm² and 26 to 10 AWG
- Chrome vanadium electric steel in special quality; oil-hardened
- Comfortable multi-component grips
- Crimping capacity can be adjusted in increments of .0004" (0.01 mm); with digital display of the preset crimping capacities; adjustment in mm, inches or comparable selection positions according to MIL; with table for calculating the settings; packaged
- For crimping turned contacts
- Four mandrel crimping pliers for turned contacts
- Four-mandrel crimping for top-quality crimping connections
- Mandrel gauge to check the basic setting
- Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
