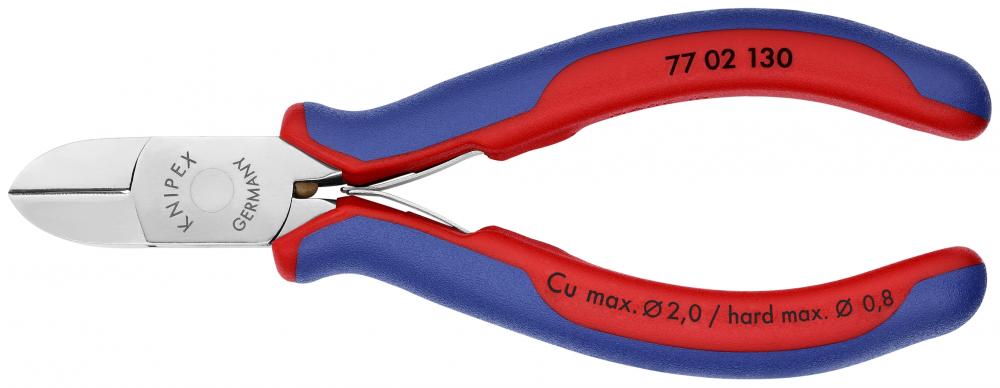

5 1/2" Electronics Diagonal Cutters (77 02 130)
by Knipex Tools
Product Specification
Item #
77 02 130
Dimensions
Height: 0.85"
Width: 2.05"
Additional product details
Vendor Item #
77 02 130
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
No
Blade Length
23/32"
Brand Name
KNIPEX
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
1/32"
Cutting Capacity - Medium Hard Wire (Nail)
1/16"
Cutting Capacity - Soft Wire
1/64" to 5/64"
Cutting Capacity Hard Wire Steel Wire
1/32"
Cutting Capacity Medium Hard Wire Nail
1/16"
Cutting Capacity Soft Wire
1/64" to 5/64"
Cutting Edge HRC
Approx. 62 HRC
Cutting Edge Shape
Bevel
Cutting Result
Semi-flush
Data Sheet Filename
7702130_en.pdf
ECCN
EAR99
Handle Length
3 3/4"
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6060
Included Products/Items
Surface Finish: Polished
Item Height (inches)
7/8"
Item Height inches
7/8"
Item Length (inches)
5.5
Item Length inches
5 1/4"
Item Quantity
1
Item Weight (lbs)
0.295
Item Weight lbs
0.295
Item Width (inches)
2 1/16"
Item Width inches
2 1/16"
Jaw Length
23/32"
Jaw Thickness
3/8"
Jaw Width
19/32"
Joint Type
Box-joint with rivet
Joint Type 2
Fixed Joint
Material Type
Ball Bearing Steel
Package Height (inches)
0.8"
Package Height inches
0.8"
Package Length (inches)
6.5"
Package Length inches
6.5"
Package Weight (lbs)
0.326
Package Weight lbs
0.326
Package Width (inches)
2.4"
Package Width inches
2.4"
Packaging Height mm
49 mm
Packaging Length mm
213 mm
Packaging Width mm
75 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Surface Finish
Polished
Tip Thickness
3/8"
Tool Attributes
Ball bearing chrome steel
, Cutters additionally laser hardened, cutter hardness at least 60 HRC
, Cutting capacity - up to 1/16" for soft wire, up to 1/16" for medium and up 1/32" for hard wire
, Cutting edge hardness approx. 62 HRC
, Cutting edges induction hardened for longer life and for more durable cutting
, For fine cutting work in electronics and fine mechanics
, Handles with multi-component covers
, Load-optimised for a more direct feel when working
, Low friction double spring for gentle and even opening
, Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
, Round head
, Semi-flush cut
, Small bevel
, Sturdy, zero-backlash box joint
, The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Tool Height mm
50 mm
Tool Length mm
130 mm
Tool Weight grams
124 g
Tool Width mm
60 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221013486
Manufactured By
Knipex Tools
Other Details:
- Ball bearing chrome steel
- Ball bearing steel; laser-hardened cutting edges
- Cutters additionally laser hardened, cutter hardness at least 60 HRC
- Cutting capacity - up to 5/64" for soft wire, 1/16" for medium and up to 1/32" for hard wire
- Cutting edge hardness approx. 62 HRC
- Cutting edges induction hardened (approx. 62 HRC)
- For fine cutting work in electronics and fine mechanics
- Load-optimised for a more direct feel when working
- Low friction double spring for gentle and even opening
- Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
- Semi-flush cut
- Semi-flush with small bevel
- Small bevel
- Sturdy, zero-backlash box joint
- The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
