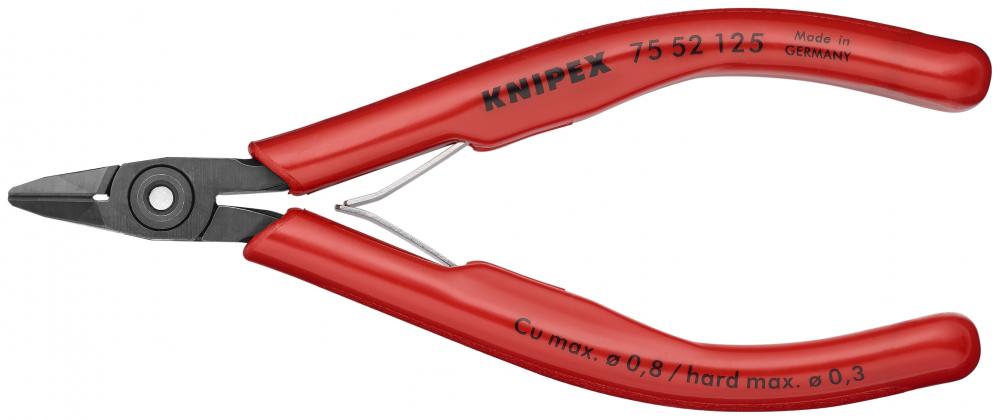

5" Electronics Diagonal Cutters (75 52 125)
by Knipex Tools
Product Specification
Item #
75 52 125
Dimensions
Height: 0.85"
Width: 2.05"
Additional product details
Vendor Item #
75 52 125
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
No
Blade Length
35/64"
Brand Name
KNIPEX
Chemical
Diisononyl Phthalate
Color
Red
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
1/64"
Cutting Capacity - Medium Hard Wire (Nail)
1/64"
Cutting Capacity - Soft Wire
1/64" to 1/32"
Cutting Capacity Hard Wire Steel Wire
1/64"
Cutting Capacity Medium Hard Wire Nail
1/64"
Cutting Capacity Soft Wire
1/64" to 3/64"
Cutting Edge HRC
Approx. 64 HRC
Cutting Edge Shape
Bevel
Cutting Result
Semi-flush
Data Sheet Filename
7552125_en.pdf
DIN
DIN ISO 9654
ECCN
EAR99
Handle Length
3 3/4"
Handle Type
Plastic
Harmonized Tariff Code
8203.20.6060
Included Products/Items
Surface Finish: Black-oxide
Item Height (inches)
7/8"
Item Height inches
7/8"
Item Length (inches)
5
Item Length inches
5"
Item Quantity
1
Item Weight (lbs)
0.18
Item Weight lbs
0.18
Item Width (inches)
2 1/16"
Item Width inches
2 1/16"
Jaw Length
35/64"
Jaw Thickness
17/64"
Jaw Width
13/32"
Joint Type
Bolted
Joint Type 2
Fixed Joint
Material Type
High-grade special tool steel, forged, multi stage oil-hardened
Other Surface Finish
Burnished
Package Height (inches)
0.8"
Package Height inches
0.8"
Package Length (inches)
6.5"
Package Length inches
6.5"
Package Weight (lbs)
0.211
Package Weight lbs
0.211
Package Width (inches)
2.4"
Package Width inches
2.4"
Packaging Height mm
47 mm
Packaging Length mm
207 mm
Packaging Width mm
91 mm
Prop 65 Conflict
Yes
Prop 65 Language Indicator
English|Spanish|French
Prop 65 Warning English
WARNING: This product can expose you to chemicals including Diisononyl Phthalate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach
does not contain SVHC
RoHS
not applicable
Surface Finish
Black-oxide
Tip Thickness
1/4"
Tool Attributes
Bolted joint for high precision and stress tolerance
, Cutting capacity - up to 3/64" for soft wire, up to 1/64" for medium and up to 1/64" for hard wire
, Cutting edge hardness approx. 64 HRC
, For very precise assembly work in electronics and fine mechanics
, Handles with plastic grips
, High-grade special tool steel, forged, multi stage oil-hardened
, Low friction double spring for gentle and even opening
, Pliers burnished
, Semi-flush cut
, With bevel
, With particularly narrow head
, With sharp, ground cutting for soft and hard wire and piano wire
Tool Height mm
38 mm
Tool Length mm
125 mm
Tool Weight grams
75 g
Tool Width mm
59 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221013424
Manufactured By
Knipex Tools
Other Details:
- Bolted joint for high precision and stress tolerance
- Cutting capacity - up to1/32" for soft wire, up to 1/64" for medium and up to 1/64" for hard wire
- Cutting edge hardness (approx. 64 HRC)
- For very precise assembly work in electronics and fine mechanics
- High-grade special tool steel, forged, multi stage oil-hardened
- Low friction double spring for gentle and even opening
- Particularly narrow head, with bevel
- Semi-flush cut
- Sharp, ground cutting edges for soft, hard wire and piano wire
- With bevel
- With particularly narrow head
- With sharp, ground cutting for soft and hard wire and piano wire
