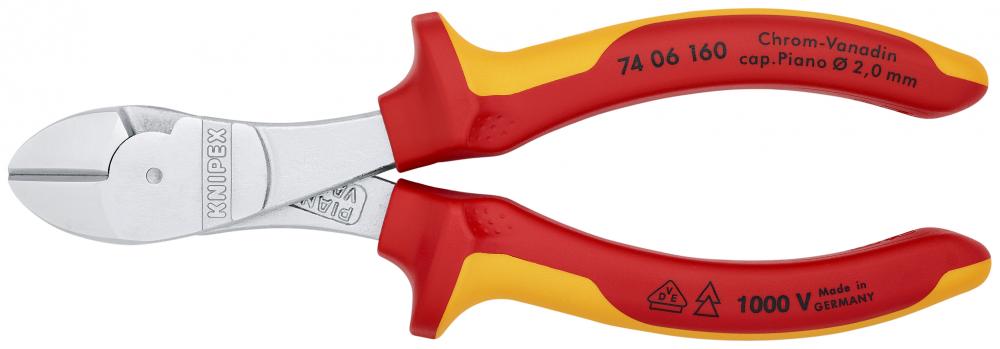

6 1/4" High Leverage Diagonal Cutters-1000V Insulated (74 06 160)
by Knipex Tools
Product Specification
Item #
74 06 160
Dimensions
Height: 1.20"
Width: 2.25"
Additional product details
Vendor Item #
74 06 160
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
Yes
Brand Name
KNIPEX
Color
Red/Yellow
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
3/32"
Cutting Capacity - Medium Hard Wire (Nail)
1/8"
Cutting Capacity - Piano Wire
5/64"
Cutting Capacity Hard Wire Steel Wire
3/32"
Cutting Capacity Medium Hard Wire Nail
1/8"
Cutting Capacity Piano Wire
5/64"
Cutting Edge HRC
Approx. 64 HRC
Cutting Edge Shape
Bevel
Data Sheet Filename
7406160_en.pdf
ECCN
EAR99
Handle Type
1000V Insulated, multi-component, VDE
Harmonized Tariff Code
8203.20.6060
IEC
IEC 60900
Included Products/Items
Surface Finish: Chrome Plated
Item Height (inches)
1 3/16"
Item Height inches
1 3/16"
Item Length (inches)
6.25
Item Length inches
6 1/4"
Item Quantity
1
Item Weight (lbs)
0.515
Item Weight lbs
0.515
Item Width (inches)
2 1/4"
Item Width inches
2 1/4"
Joint Type
Forged-in axle
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium heavy-duty steel, forged, oil-hardened
Package Height (inches)
1.3"
Package Height inches
1.3"
Package Length (inches)
7"
Package Length inches
7"
Package Weight (lbs)
0.55
Package Weight lbs
0.55
Package Width (inches)
2.3"
Package Width inches
2.3"
Packaging Height mm
30 mm
Packaging Length mm
177 mm
Packaging Width mm
61 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Surface Finish
Chrome Plated
Tool Attributes
20% reduction in required force compared to conventional diagonal cutters of the same length
, All insulated tools meet the requirements of ASTM F1505
, Cutting Capacity - up to 1/8" for medium wire, up to 3/32" for hard and up to 5/64" for piano wire
, High leverage means less force required because the rivet is closer to the cutting edge
, Precision cutting edges
Tool Height mm
19 mm
Tool Length mm
160 mm
Tool Weight grams
215 g
Tool Width mm
60 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221005078
Manufactured By
Knipex Tools
Other Details:
- 1000V multi-component grips, VDE-tested
- 20% less effort required compared to conventional diagonal cutters of the same length
- Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
- For very tough, continuous use
- Forged-on axle for heavy-duty work
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
UPC Code
Additional options that would change other selections
Data Sheet Filename
Additional options that would change other selections
Item Weight lbs
Additional options that would change other selections
Packaging Height mm
Additional options that would change other selections
Call for Price
$
0
00
/
/ 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
