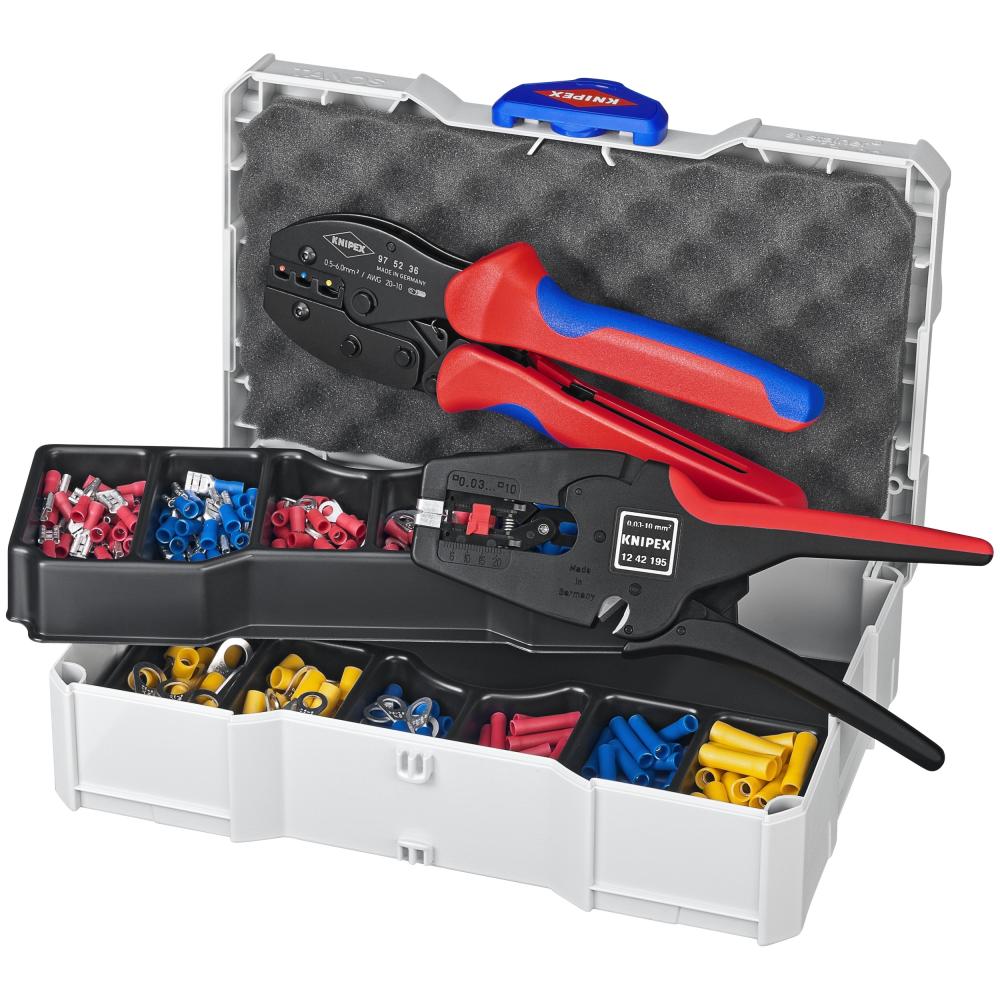

Crimp Assortments with 12 42 195 and 97 52 36 (97 90 22)
by Knipex Tools
Kit Includes Part Numbers: 97 52 36 | 12 42 195
Downloads
Product Specification
Item #
97 90 22
Dimensions
Height: 3.19"
Width: 6.70"
Additional product details
Vendor Item #
97 90 22
Industrial Category
Hand Tools
Industrial Subcategory
Crimping Tools
Industrial Subtype
Cable and Wire Crimping Tools
, Crimping Accessories
1000 Volt Insulated
No
Brand Name
KNIPEX
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Crimping Capacity - AWG
20 to 10
Crimping Capacity - mm2
0.5 to 6.0
Crimping Profile
Oval crimp
Data Sheet Filename
979022_en.pdf
ECCN
EAR99
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6060
Item Quantity
1
Item Weight (lbs)
3.515
Material Type
Chrome vanadium electric steel, oil-hardened|Fiberglass reinforced plastic
Other Material Type
Blades: special tool steel, oil-hardened
Other Surface Finish
Burnished
Package Height (inches)
3"
Package Height inches
3"
Package Length (inches)
10.45"
Package Length inches
10.45"
Package Weight (lbs)
3.515
Package Weight lbs
3.515
Package Width (inches)
6.7"
Package Width inches
6.7"
Packaging Height mm
67 mm
Packaging Length mm
265 mm
Packaging Width mm
168 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Stripping Capacity - AWG
20 to 10
Surface Finish
Black-oxide
Terminal Type
Butt/Ring/Fork (Insulated)
Tool Attributes
Assortment contains some of the most common sizes of end sleeves
, Assortment includes - (1) 97 52 36 crimper and (1) 12 42 195 self-adjusting wire stripper, (25) each of 6.3 x 0.8 mm blade terminal sockets, 0.5 to 1 mm2 and 1.5 to 2.5 mm2, (25) each of Eye type cable connectors 4mm (0.5 to 1 mm2), 5 (0.5 to 1mm2), 4mm (1
, Kit assortment for crimping cable connectors - includes crimping pliers and self-adjusting wire strippers
Tool Height mm
67 mm
Tool Length mm
265 mm
Tool Weight grams
1527 g
Tool Width mm
168 mm
Unit Of Measure
Kit
UNSPSC
27112147
UNSPSC Number
27112147
UOM Qty
1
UPC Code
843221016135
Manufactured By
Knipex Tools
Other Details:
- 4mm (0.5 to 1 mm²) ring terminal – 25 each
- 4mm (1.5 to 2.5mm²) ring terminal – 25 each
- 5mm (0.5 to 1mm²) ring terminal – 25 each
- 5mm (1.5 to 2.5mm²) ring terminal – 25 each
- 6.3 x 0.8 mm blade terminal sockets (0.5 to 1 mm² and 1.5 to 2.5 mm²) – 25 each
- 6mm (1.5 to 2.5mm²) ring terminal – 25 each
- 6mm (4 to 6 mm) ring terminal – 25 each
- 8mm (4 to 6 mm²) ring terminal – 25 each
- Blue (1.5 to 2.5mm²) insulated butt connector – 25 each
- In a TANOS MINI-systainer® (solid plastic box) includes two stackable plastic inserts with 6 trays each for connectors
- Includes 97 52 36 (8 1/2" Crimping Pliers For Insulated Terminals, Plug Connectors and Butt Connectors) and 12 42 195 (7 3/4" Automatic Wire Stripper 8-32 AWG) with assortment of the most common sizes of end sleeves
- KNIPEX crimping pliers with crimp assortments are versatile and efficient tools for various crimping tasks. With a range of interchangeable crimping dies, the crimping pliers allow for precise and various crimps on different connectors and terminals. Wheth
- Red (0.5 to 1mm²) insulated butt connector – 25 each
- T-Loc fastener for one-handed operation: open or close the systainer® with one turn and connect to a second systainer®
- Yellow (4 to 6mm²) insulated butt connector – 25 each
