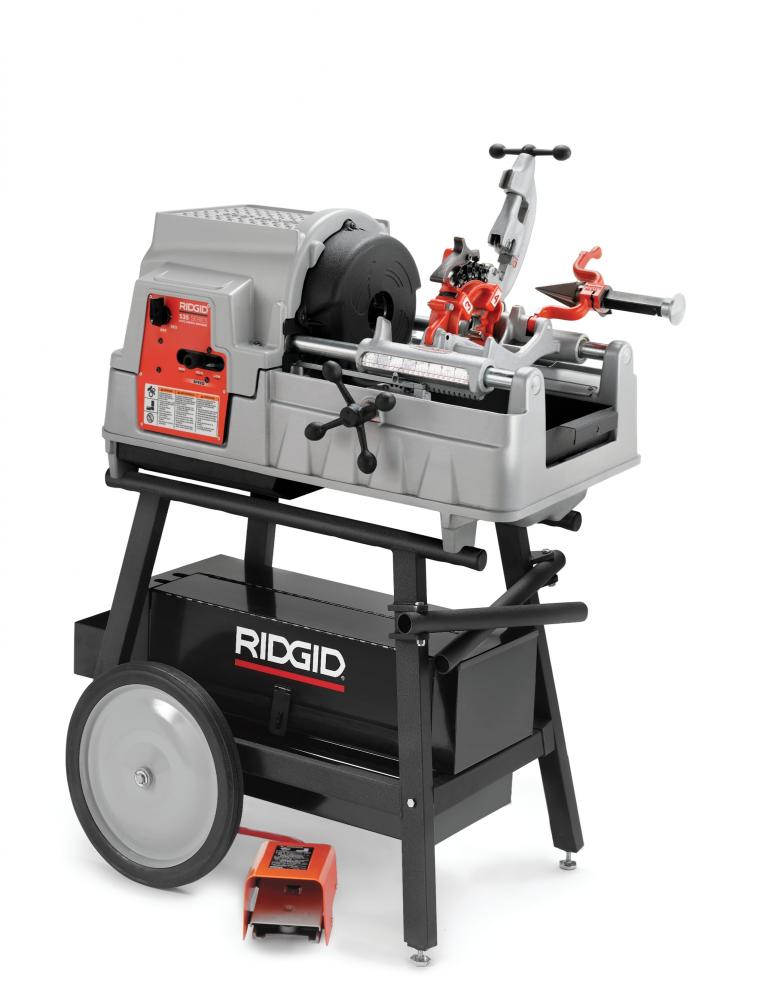

Automatic Chuck Machine Only - No Die Head or Dies (91142)
by RIDGID Tool Company
The Model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535 features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID® equipment.
Product Specification
Item #
91142
Dimensions
Additional product details
Vendor Item #
91142
Industrial Category
Power Tools
Industrial Subcategory
Plumbing Power Tools
Industrial Subtype
Pipe Threading and Cutting Machines
Allow Standard Pack to be Broken
False
Bolt Capacity
1/4''-2” (8 mm-50 mm).
Brand
RIDGID
CA Prop 65 Cancer
Yes
CA Prop 65 Chemcial Names
Lead, Styrene, Ethylbenzene, Naphthalene, Carbon Black, Glass Wool Fibers
CA Prop 65 Reproductive Harm
Yes
Chuck
Automatic with four reversible forged jaws.
Country of Origin
US
Cutters
Self-centering, full-floating. Two models available
Features
17-gauge steel walls and welded construction.
, Automatic chuck.
, Can be used with geared threader Model 141.
, Cut-outs for power cord and foot switch storage.
, Generous top cover area for keeping tools and fittings handy.
, High clearance carriage.
, Large 6.6 l (1.75 gallon) oil reservoir.
, Large chip tray.
, Length gauge for quick, accurate cut-off.
, Oversized bi-fold door with steel clasp.
, Steel Cabinet Features
, Two drain plugs for easy cleaning.
, Two internal and one external storage shelves.
, Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
Hazardous Material
False
Horsepower
2
HTS Code
8459708080
Included Components
11931: Thread Cutting Oil; 44185: Wheel, Cutter E1032; 42365: 341 Reamer Assy; 42390: 820 Cutter Assy; 46030: 3/16" Hex Key; 46015: Key, Hex 5/32
Item Weight (lbs)
340 LB / 155 KG
Max Operating Temperature
0 F
Model Number
535A
Motor Amperage
18
Motor Horsepower
2
Motor RPM
16/46/58
Motor Type
AC Induction Single Phase
Motor Voltage
120 VLT
Oil Pump
Self-priming gerotor oil pump.
Package Weight (LB)
341
Pipe Capacity
1/8''-2'' (3 mm-50 mm) 2 1/2''-4'' (62 mm-100 mm) with 141 geared threader.
Product Category
Pipe and Tubing Tools
, Power Threading
, Power Threading Machines
, Threading
Product Warranty
Full Lifetime Warranty
Reamer
5-flute cone, RH, 1/8''-2'' (3 mm-50 mm).
Rear Centering Device
Automatic, centering only.
Similar SKUs
33471/33481/33491/33501/33511/84097/91322/96057/96067/96072
Specifications
Model 820 Wheel-Type Cutter, pipe capacity 1/8-2'' (6-50 mm), bolt capacity 1/4-1'' (8-25 mm).; Model 821 Blade Type Cutter, pipe capacity 1/2-2'' (15-50 mm).; RH/LH combination reamer available.
Switches
Forward/off/reverse and integral safety foot switch.
Unit Depth
47.5
Unit Volume
35874.38 cubic
UPC Code
095691911421
Weight
340 LB / 155 KG
Manufactured By
RIDGID Tool Company
Other Details:
- 3-speed transmission offers greater control.
- Can be used with geared threader Model 141.
- Can be used with the 141 Geared Threader for pipe up to 4".
- High clearance carriage.
- Induction motor for better speed, torque & noise reduction.
- Use w/semi-automatic, self-opening or quick-opening die heads.
- Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
