20 mm to 1/2 (F) NPT Aluminum Tee Adapter S08
Image may not reflect selected features

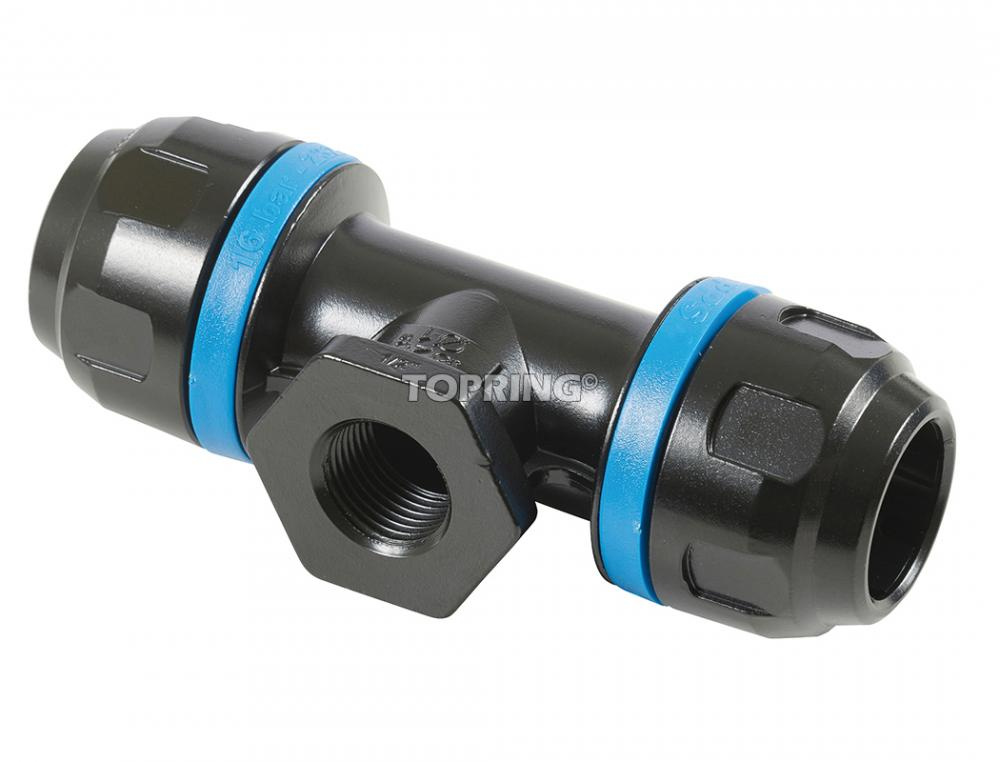

20 mm to 1/2 (F) NPT Aluminum Tee Adapter S08 (08.343) by Topring
Downloads
Product Specification
Item #
08.343
Dimensions
Height: 1.57"
Width: 3.15"
Length: 4.72"
Additional product details
Vendor Item #
08.343
Industrial Category
Plumbing
Industrial Subcategory
Pipe Fittings and Couplings
Industrial Subtype
Aluminum Pipe Fittings , Quick Connect Air Couplings
2nd Inlet Connection Gender
Female
2nd Inlet Connection Subtype
NPT
2nd Inlet Connection Type
Threaded
2nd Inlet Nominal Size (Imperial)
1/2 in
Body, Housing or Frame Material
Aluminum
Color
Black; Blue
Compatible Fluids
Air; Neutral and Inert Gases
Compatible With Pipe External Diameters (mm)
20
Country of Origin
IT
Inlet Connection Subtype
Series 08 Fitting
Inlet Connection Type
Compression Fitting
Inlet Quantity
3
Item Height (inches)
1.57
Item Length (inches)
4.72
Item Quantity
1
Item Weight (lbs)
0.29
Item Width (inches)
3.15
Mechanism or Internal Moving Parts Material
Stainless Steel
Order Minimum
1
Order Multiple
1
Order Unit Of Measure
EA
Package Height (inches)
1.57
Package Length (inches)
3.15
Package Weight (lbs)
0.29
Package Width (inches)
3.15
Product Series
08
Product Type
Reducers
Shape
Tee
With CRN
Yes
Manufactured By
Topring


Other Details:
  • Body and Nut: 100% Aluminum, EN AB 46100
  • Connection Type: Compression
  • Double Lobe Seal: NBR with PTFE coating
  • Gripping Ring: Stainless steel
  • Has a Canadian Registration Number (CRN)
  • Maximum working pressure: 232 PSI (16 BAR)
  • PPS model
  • S08 Compatible Pipe O.D.: 20 mm
  • Vacuum level: -28.94 in Hg / -0.98 BAR
  • Working Temperature: -20 to 80°
