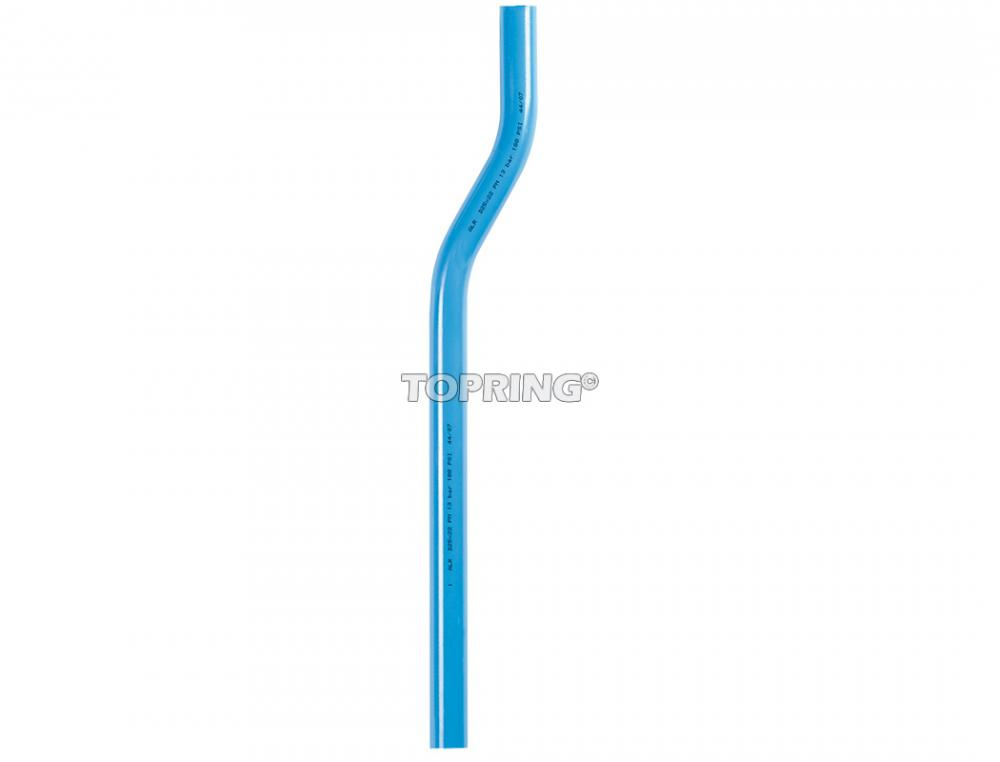

25 mm 48 cm Aluminum S Bend Pipe S08 (08.136)
by Topring
Product Specification
Item #
08.136
Dimensions
Height: 0.98"
Width: 3.54"
Length: 19.29"
Additional product details
Vendor Item #
08.136
Industrial Category
Plumbing
Industrial Subcategory
Pipe and Tubing
Industrial Subtype
Aluminum Pipe Fittings
, Aluminum Pipe
ASME Compliance
B31; B31.1; B31.3
Body, Housing or Frame Material
Extruded Aluminum EN AW 6063 T6
Color
Blue
Compatible Fluids
Air; Neutral and Inert Gases
Country of Origin
FR
External Diameter (mm)
25
Item Height (inches)
0.98
Item Length (inches)
19.29
Item Quantity
1
Item Weight (lbs)
0.31
Item Width (inches)
3.54
Maximum Fluid Temperature (°C
80
Maximum Fluid Temperature (°C)
80
Maximum Inlet Pressure (PSI)
232
Minimum Fluid Temperature (°C
-20
Minimum Fluid Temperature (°C)
-20
Order Minimum
1
Order Multiple
1
Order Unit Of Measure
EA
Package Height (inches)
0.98
Package Length (inches)
3.54
Package Weight (lbs)
0.31
Package Width (inches)
3.54
Product Series
08
Product Type
S Bend Pipes
Manufactured By
Topring
Other Details:
- Burst pressure: coefficient of 5:1
- Color: blue RAL 5012
- Compatible fluids: Compressed air, industrial vacuum, neutral and inert gases (nitrogen, argon or C02)
- Maximum inlet pressure: 232 PSI
- Off-set (D): 70 mm
- Operating temperature: -20 to 80°
- PPS model
- Rigid extruded aluminum pipe, alloy EN AW 6060 T6
- Vacuum level: -28.94 in Hg / -0.98 BAR
External Diameter (mm)
