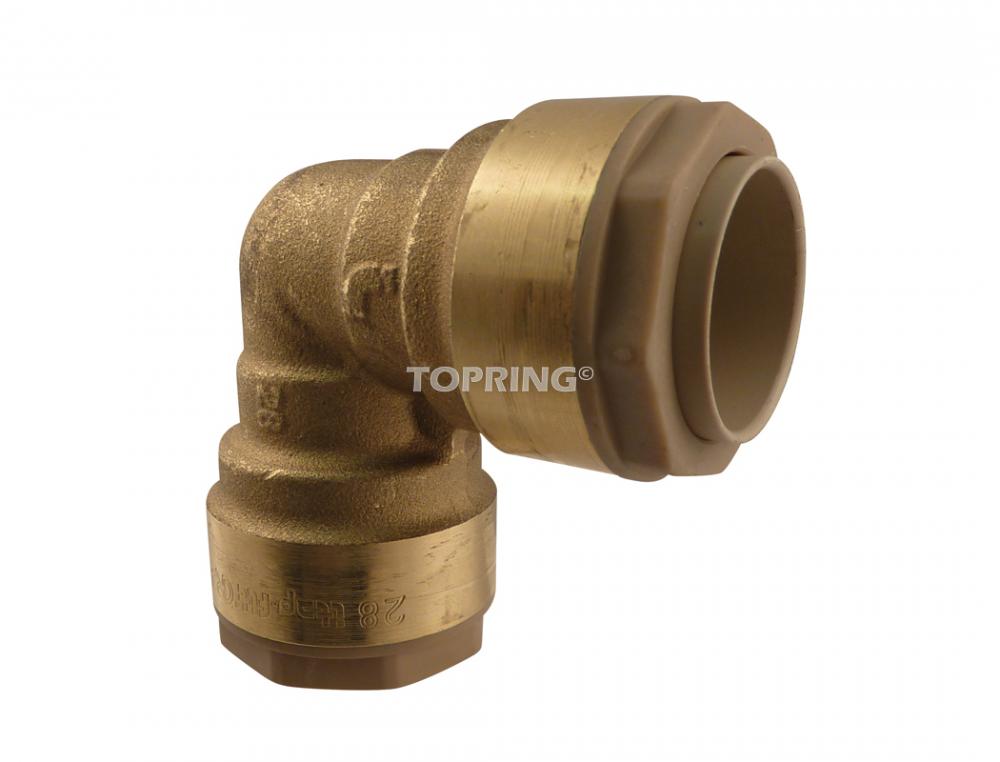

90° Elbow Union 22mm QuickLINE
Image may not reflect selected features
90° Elbow Union 22mm QuickLINE (7.265) by Topring
Product Specification
Item #
7.265
Dimensions
Height: 2.76"
Width: 2.76"
Additional product details
Vendor Item #
7.265
Industrial Category
Pneumatics
Industrial Subcategory
Distribution Equipment
Item Length inches
1.38
Item Quantity
1
Item Weight lbs
0.37
Product Series
S07 QuickLINE Compressed Air Piping System
Spec 01
Category: Fitting and take-off drop coupling
Spec 02
Material: Brass
Spec 03
Outside diameter: 22 mm (3/4 in)
Spec 04
Subcategory: Elbow
UNSPSC Number
40172800
Manufactured By
Topring


Other Details:
  • Body: Brass
  • Full flow design
  • Fully reusable
  • Limited fitting expansion under pressure, resulting in dimensionally stable installations
  • No threading, no soldering, no sealing materials required
  • O-Ring: Nitrile rubber
  • Outside diameters: 15, 22 and 28 mm
  • Quick assembly
  • Release collar: Polyamide
  • Release Sleeve: Fiber glass reinforced polyamide composite
  • Retaining ring: Stainless steel
  • Size: 22 mm
  • Spacer: Acetal resin
  • Suitable for aluminium pipes (and nylon pipes Series 5)
Compatible With Pipe External Diameters (mm)
