Tool Balancer Constant Pull Reels 2.3-4.5 kg
Image may not reflect selected features

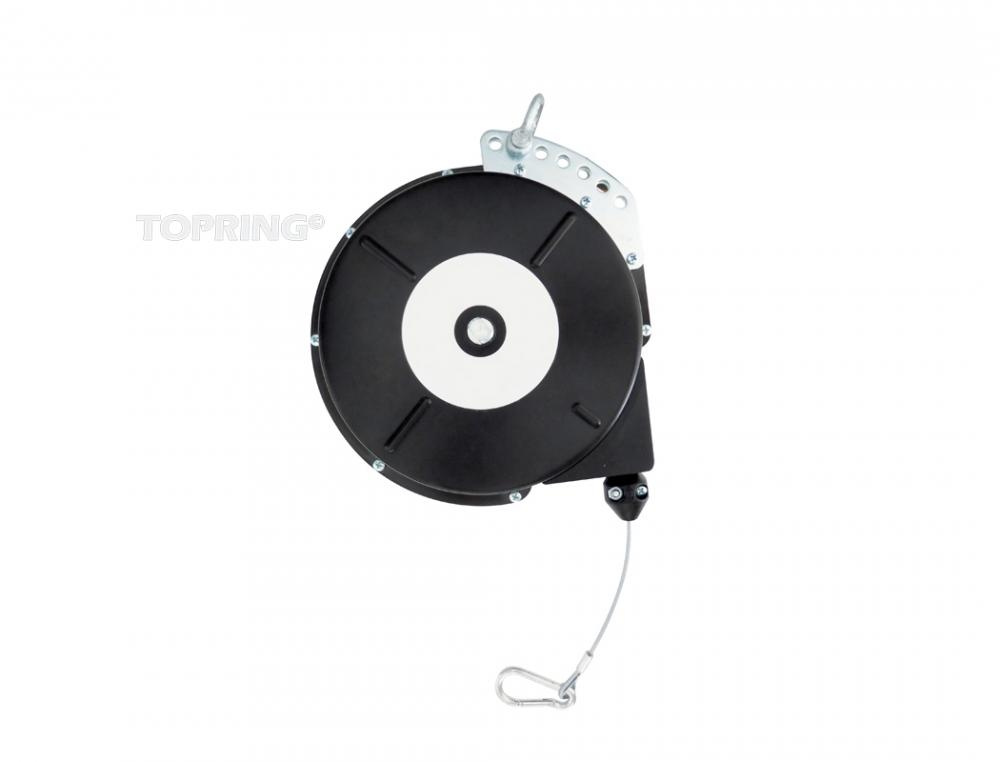

Tool Balancer Constant Pull Reels 2.3-4.5 kg (64.3) by Topring
Product Specification
Item #
64.3
Dimensions
Height: 4.33"
Width: 10.63"
Additional product details
Vendor Item #
64.3
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Item Length inches
11.02
Item Quantity
1
Item Weight lbs
9.11
Product Series
S64 Tool Balancers
Spec 01
Category: With constant pull
Spec 02
Lenght: 2.4 m (7 ft 11 in)
Spec 03
Measure: 2.3 to 4.5 kg (5.1 to 9.9 lbs)
Spec 04
Outside diameter: 3.0 mm (0.12 in)
UNSPSC Number
27112809
Manufactured By
Topring


Other Details:
  • A slight pull on the cable releases the lock
  • Balancers (Constant pull reels)
  • Cable length: 2.4 m
  • Cable: 3.0 mm
  • Cable: Galvanized steel nylon coated
  • Capacity Load Min-Max: 2.3 “ 4.5 kg
  • Designed for long lifespan and trouble-free service
  • Galvanized steel with nylon coating cable (414 kg test)
  • Housing: Rugged steel with baked polyester finish
  • Include safety tool clip and adjustable cable stop
  • locking models (or retractors) include a positive ratchet-lock mechanism to allow locking of the cable at a specific height
  • May be adjusted to suspend through 15.2 cm “ 45.7 cm range.
  • Net Weight: 2.7 kg
  • Reinforced hanging bracket with forged clevis for ceiling mounting and extra holes for safety chain attachment
  • Spring is permanently lubricated and provides constant tension, adjustable for suspending tool in normal working zone (15.2 cm “ 45.7 cm)
  • The lock feature may be disengaged externally when constant tension is required
Maximum Load (kg)
Additional options that would change other selections
Minimum Load (kg)
Additional options that would change other selections
Item Weight lbs
Additional options that would change other selections
Item Width (inches)
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
0
00
/ / 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
