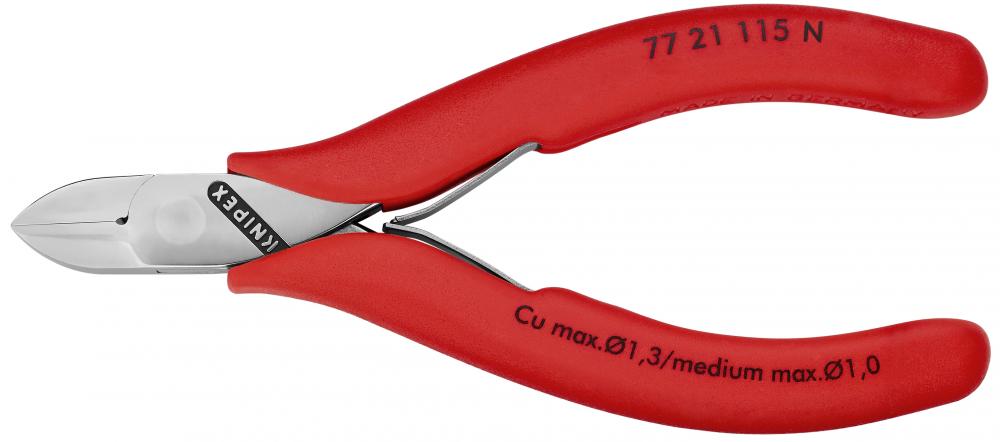

4 1/2" Electronics Diagonal Cutters (77 21 115 N)
by Knipex Tools
Product Specification
Item #
77 21 115 N
Dimensions
Height: 0.56"
Width: 1.88"
Additional product details
Vendor Item #
77 21 115 N
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
No
Blade Length
33/64"
Brand Name
KNIPEX
Color
Red
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Medium Hard Wire (Nail)
3/64"
Cutting Capacity - Soft Wire
1/64" to 3/64"
Cutting Capacity Medium Hard Wire Nail
3/64"
Cutting Capacity Soft Wire
1/64" to 3/64"
Cutting Edge HRC
Approx. 57 HRC
Cutting Edge Shape
Without bevel
Cutting Result
Flush
Data Sheet Filename
7721115n_en.pdf
ECCN
EAR99
Handle Length
3 1/2"
Handle Type
Single component
Harmonized Tariff Code
8203.20.6060
Included Products/Items
Surface Finish: Polished
Item Height (inches)
9/16"
Item Height inches
9/16"
Item Length (inches)
4.5
Item Length inches
4 1/2"
Item Quantity
1
Item Weight (lbs)
0.14
Item Weight lbs
0.14
Item Width (inches)
1 7/8"
Item Width inches
1 7/8"
Jaw Length
33/64"
Jaw Thickness
9/32"
Jaw Width
7/16"
Joint Type
Box-joint with rivet
Joint Type 2
Fixed Joint
Material Type
Ball Bearing Steel
Packaging Height mm
48 mm
Packaging Length mm
189 mm
Packaging Width mm
72 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Surface Finish
Polished
Tip Thickness
9/32"
Tool Attributes
Ball bearing chrome steel
, Cutters additionally laser hardened, cutter hardness at least 60 HRC
, Cutting capacity - up to 1/16" for soft wire and up to 1/16" for medium wire
, Cutting edges induction hardened for longer life and for more durable cutting
, For fine cutting work in electronics and fine mechanics
, Load-optimized for a more direct feel when working
, Low friction double spring for gentle and even opening
, Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
, Round head, without bevel
, Sturdy, zero-backlash box joint
, The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Tool Height mm
12 mm
Tool Length mm
115 mm
Tool Weight grams
50 g
Tool Width mm
64 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221023713
Manufactured By
Knipex Tools
Other Details:
- Ball bearing steel; laser-hardened cutting edges
- Cutters additionally laser hardened, cutter hardness at least 60 HRC
- Cutting capacity - up to 1/16" for soft wire and up to 1/16" for medium wire
- Cutting edges induction hardened (approx. 57 HRC)
- Flush cut
- For fine cutting work in electronics and fine mechanics
- Low friction double spring for gentle and even opening
- Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
- Sturdy, zero-backlash box joint
- The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
