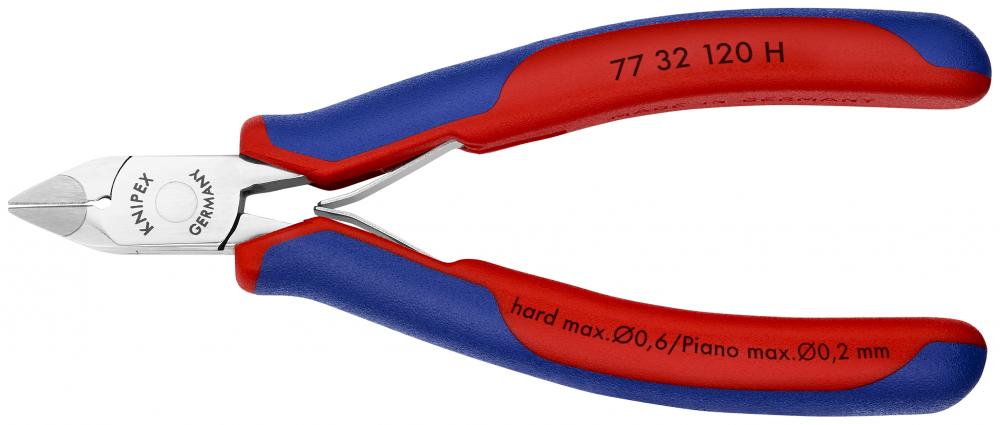

4 3/4" Electronics Diagonal Cutters-Carbide Metal Cutting Edges (77 32 120 H)
by Knipex Tools
Product Specification
Item #
77 32 120 H
Dimensions
Height: 0.75"
Width: 2.00"
Additional product details
Vendor Item #
77 32 120 H
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
No
Blade Length
9/16"
Brand Name
KNIPEX
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
1/64"
Cutting Capacity - Medium Hard Wire (Nail)
1/32"
Cutting Capacity - Piano Wire
1/64"
Cutting Capacity - Soft Wire
1/16"
Cutting Capacity Hard Wire Steel Wire
1/64"
Cutting Capacity Medium Hard Wire Nail
1/32"
Cutting Capacity Soft Wire
1/16"
Cutting Edge HRC
Approx. 62 HRC
Cutting Edge Shape
Small bevel
Cutting Result
Semi-flush
Data Sheet Filename
7732120h_en.pdf
DIN
DIN ISO 9654
ECCN
EAR99
Handle Length
3 1/2"
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6060
Included Products/Items
Handle Type: Multi-component
Item Height (inches)
3/4"
Item Height inches
3/4"
Item Length (inches)
4.75
Item Length inches
4 3/4"
Item Quantity
1
Item Weight (lbs)
0.17
Item Weight lbs
0.17
Item Width (inches)
2"
Item Width inches
2"
Jaw Length
9/16"
Jaw Thickness
19/64"
Jaw Width
7/16"
Joint Type
Box-joint with rivet
Joint Type 2
Fixed Joint
Material Type
Ball Bearing Steel
Other Material Type
Carbide metal cutting edges
Package Height (inches)
1.2"
Package Height inches
1.2"
Package Length (inches)
5.0"
Package Length inches
5.0"
Package Weight (lbs)
0.201
Package Weight lbs
0.201
Package Width (inches)
2.4"
Package Width inches
2.4"
Packaging Height mm
30 mm
Packaging Length mm
152 mm
Packaging Width mm
61 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Surface Finish
Polished
Tip Thickness
19/64"
Tool Attributes
Always the right cutting tool, even with the hardest material
, Constantly reliable cutting results due to the avoidance of cutter deformations
, Cutting capacity - up to 1/16" for soft wire, up to 1/16" for medium, up to 1/32" for hard and up to 1/64" for piano wire
, Cutting edges induction hardened for longer life and for more durable cutting
, For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, such as those used more frequently in the electronics and aerospace industries
, For fine cutting work in electronics and fine mechanics
, Hardness of the carbide cutting edges 80 – 83 HRC
, High cost saving due to longer service life of the pliers
, Low friction double spring for gentle and even opening
, Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges
, Pointed head with chamfer
, Precision carbide metal cutting edges soldered into forged blanks
, Semi-flush cut
, Small bevel
, Sturdy, zero-backlash box joint
Tool Height mm
19 mm
Tool Length mm
120 mm
Tool Weight grams
80 g
Tool Width mm
50 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221020590
Manufactured By
Knipex Tools
Other Details:
- Ball bearing steel; laser-hardened cutting edges
- Constantly reliable cutting results due to the avoidance of cutter deformations
- For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, which are used more frequently in the electronics and aerospace industries
- Hardness of the carbide cutting edges (approx. 80 – 83 HRC)
- High cost saving due to longer service life of the pliers
- High cost savings due to longer service life of the pliers
- Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges
- Pliers with carbide metal cutting edges have a substantially longer service life than with conventional cutting edges
- Pointed head with chamfer
- Pointed head with chamfer; with small bevel
- Precision carbide metal cutting edges soldered into forged blanks
- Semi-flush cut
- Small bevel
- Sturdy, zero backlash box-joint
