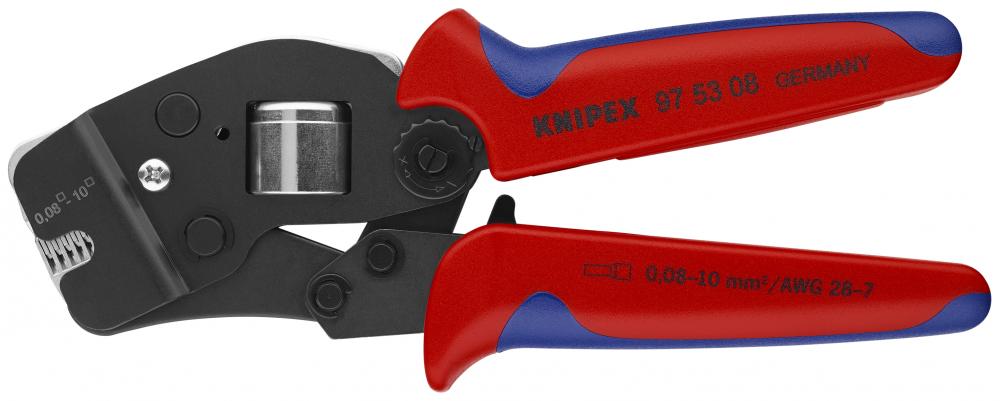

7 1/2" Self-Adjusting Crimping Pliers For Wire Ferrules (97 53 08)
by Knipex Tools
Product Specification
Item #
97 53 08
Dimensions
Height: 0.95"
Width: 2.90"
Additional product details
Vendor Item #
97 53 08
Industrial Category
Hand Tools
Industrial Subcategory
Crimping Tools
Industrial Subtype
Cable and Wire Crimping Tools
1000 Volt Insulated
No
Brand Name
KNIPEX
Chemical
Diisononyl Phthalate
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Crimping Capacity - AWG
28 to 8
Crimping Capacity - mm2
0.08 to 10.0
Crimping Positions
1
Crimping Profile
Automatic square crimp
Data Sheet Filename
975308_en.pdf
ECCN
EAR99
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6030
Included Products/Items
Surface Finish: Black-oxide
Item Height (inches)
15/16"
Item Height inches
15/16"
Item Length (inches)
7.5
Item Length inches
7 1/2"
Item Quantity
1
Item Weight (lbs)
1.055
Item Weight lbs
1.055
Item Width (inches)
2 7/8"
Item Width inches
2 7/8"
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium electric steel, oil-hardened
Other Surface Finish
Burnished
Package Height (inches)
1.05"
Package Height inches
1.05"
Package Length (inches)
9.65"
Package Length inches
9.65"
Package Weight (lbs)
1.14
Package Weight lbs
1.14
Package Width (inches)
3.25"
Package Width inches
3.25"
Packaging Height mm
22 mm
Packaging Length mm
235 mm
Packaging Width mm
77 mm
Prop 65 Conflict
Yes
Prop 65 Language Indicator
English|Spanish|French
Prop 65 Warning English
WARNING: This product can expose you to chemicals including Diisononyl Phthalate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach
contains SVHC
RoHS
not applicable
Spring Loaded
Yes
Surface Finish
Black-oxide
Terminal Type
End Ferrules-Single|End Ferrules-Single (Insulated)
Tool Attributes
Capacity - 0.08 to 10 mm2 and 28 to 7 AWG
, For crimping end sleeves
, Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
Tool Height mm
20 mm
Tool Length mm
190 mm
Tool Weight grams
477 g
Tool Width mm
75 mm
Unit Of Measure
Each
UNSPSC
27112147
UNSPSC Number
27112147
UOM Qty
1
UPC Code
843221002268
Manufactured By
Knipex Tools
Other Details:
- Chrome vanadium electric steel in special quality, oil-hardened
- Crimping from 28 to 8 AWG (0.08 - 10.0 mm²) in one profile; wire ferrules (end sleeves) up to 14 AWG (2.5 mm²) can also be loaded parallel from the side; particularly suitable for all twin ferrules (end sleeves) up to 2 x 4 mm² or 2 x AWG 10
- Crimping pressure has been set precisely (calibrated) in the factory
- For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
- High operation comfort thanks to handy shape and low weight
- Optimum transmission of force due to toggle lever for fatigue-reduced operation
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die
- Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
