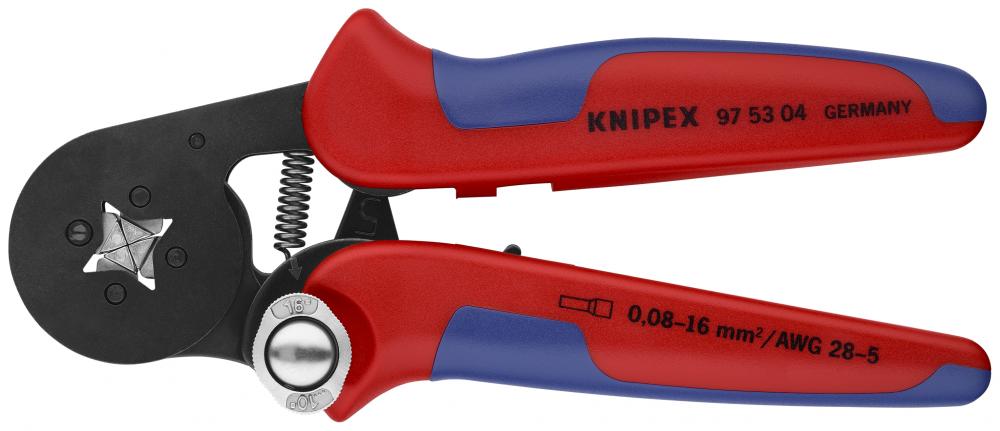

7" Self-Adjusting Crimping Pliers For Wire Ferrules (97 53 04)
by Knipex Tools
Product Specification
Item #
97 53 04
Dimensions
Height: 1.20"
Width: 2.75"
Additional product details
Vendor Item #
97 53 04
Industrial Category
Hand Tools
Industrial Subcategory
Crimping Tools
Industrial Subtype
Cable and Wire Crimping Tools
1000 Volt Insulated
No
Brand Name
KNIPEX
Chemical
Diisononyl Phthalate
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Crimping Capacity - AWG
28 to 8 and 6
Crimping Capacity - mm2
0.08 to 10.0 and 16.0
Crimping Positions
1
Crimping Profile
Automatic square crimp
Data Sheet Filename
975304_en.pdf
ECCN
EAR99
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6030
Included Products/Items
Surface Finish: Black-oxide
Item Height (inches)
1 3/16"
Item Height inches
1 3/16"
Item Length (inches)
7
Item Length inches
7"
Item Quantity
1
Item Weight (lbs)
0.94
Item Weight lbs
0.94
Item Width (inches)
2 3/4"
Item Width inches
2 3/4"
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium electric steel, oil-hardened
Other Surface Finish
Burnished
Package Height (inches)
1.7"
Package Height inches
1.7"
Package Length (inches)
7.2"
Package Length inches
7.2"
Package Weight (lbs)
1.015
Package Weight lbs
1.015
Package Width (inches)
3.05"
Package Width inches
3.05"
Packaging Height mm
20 mm
Packaging Length mm
235 mm
Packaging Width mm
75 mm
Prop 65 Conflict
Yes
Prop 65 Language Indicator
English|Spanish|French
Prop 65 Warning English
WARNING: This product can expose you to chemicals including Diisononyl Phthalate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach
contains SVHC
RoHS
not applicable
Spring Loaded
Yes
Surface Finish
Black-oxide
Terminal Type
End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)
Tool Attributes
Capacity - 0.08 to 10 and 16 mm2 and 28 to 7 and 5 AWG
, For crimping end sleeves
, Self-adjusting crimping pliers for end sleeves (ferrules) with lateral access
Tool Height mm
21 mm
Tool Length mm
180 mm
Tool Weight grams
459 g
Tool Width mm
77 mm
Unit Of Measure
Each
UNSPSC
27112147
UNSPSC Number
27112147
UOM Qty
1
UPC Code
843221015930
Manufactured By
Knipex Tools
Other Details:
- Capacity - 0.08 to 10 and 16 mm² and 28 to 8 and 6 AWG
- Chrome vanadium electric steel in special quality, oil-hardened
- For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
- High operation comfort thanks to handy shape and low weight
- Optimum transmission of force due to toggle lever for fatigue-reduced operation
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Self-adjusting crimping pliers for end sleeves (ferrules) with side access
- Self-adjustment to the size of ferrules (end sleeves) required
- These tools have been set precisely (calibrated) in the factory
